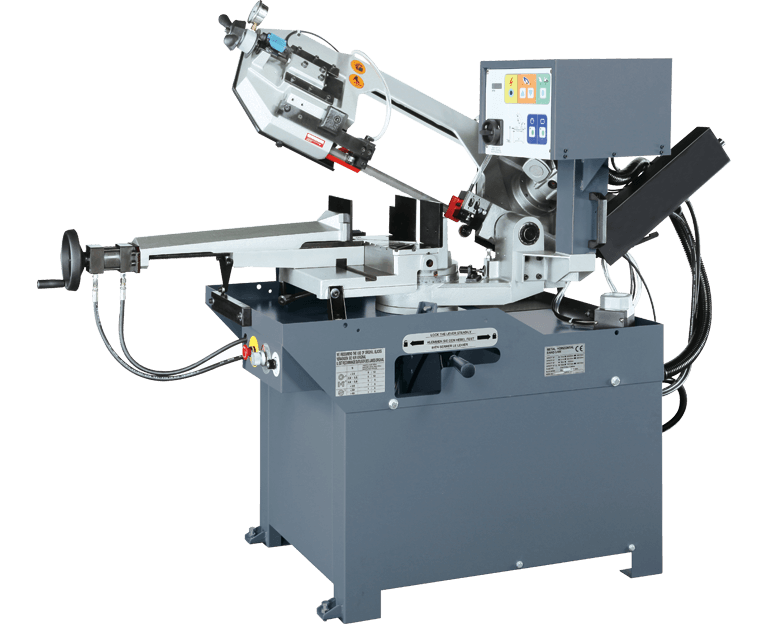

WE-275DSAV- ASSUREMAC DOUBLE MITRE CUTTING

Features:

• H 220   W 260

• Hydraulic cylinder controls lift of saw baw

• Angle cutting (R/L45˚ R60˚)

• The adjustment of vise´s position by manual

• Hydraulic vise clamping

• Inverter controls variable blade speed

• Blade broken detection

• Blade tension indicator

Specification

Capacity 90°

• 220 mm

• 215 mm

• 105 x 260 mm

Capacity 45°

• 150 mm

• 145 mm

• 70 x 155 mm

Capacity 60°

• 90 mm

• 85 mm

• 85 x 90mm

Capacity 45°(L)

• 135 mm

• 110 mm

• 45 x 160mm

Blade Size

• 27 x 0.9 x 2725 mm

Blade Speed (2 Speeds)

• 50 HZ 4P 72 m/min, 8P 36 m/min

Blade Speed (Inverter)

• 20-85 mpm

Blade Motor

• 1.5 HP (1.1kw)

Hydraulic/Coolant Motor

• 1/2 HP (0.38 kw)/32 W

Container Loads

• 10 units/20, 20 units/40

Packing Size

• 1550 x 750 x 1055 mm (DS / DSV).

• 1550 x 750 x 1600 mm (DSA/

  DSAV)

N.W./G.W.

• 278 kg/310kg

⬇
