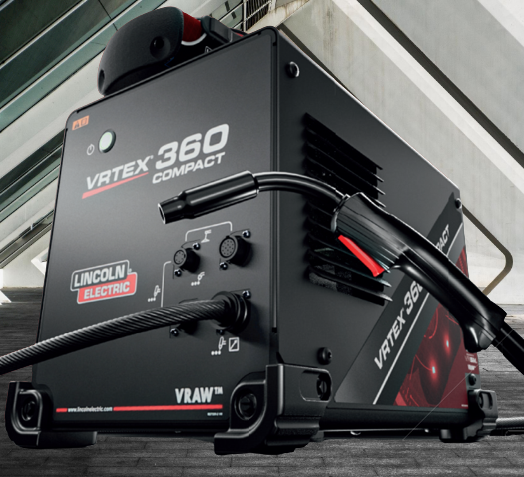

Lincoln Electric’s VRTEX® 360 Compact Single
Welding Simulator
Brand: Lincoln Electric
Model: VRTEX 360 Compact Single
Vision Technology Virtual Reality
Power Supply 115-230VAC
Regulations CE, CSA, RCM, EAC
Certifications ISO 9001, ISO 14001
Software: Lifetime, Free Upgrade Version
Machine come with:
Retractable SMAW stick stinger, GMAW/FCAW gun and GTAW TIG torch, filler metal and adaptive foot pedal devices.
Oxy fuel cutting features (Optional)
Multiple virtual environments
3 screens are simultaneously viewable for the audience during welding: helmet view, scoring screen, instructor view.
Include Welding Standards, Measurement, Safety, Principles of Welding Mode features Students to do welding.
Multiple Base metals - Mild Steel, Aluminium, Stainless Steel
Multiple Welding process
GMAW (Short Arc, Axial Spray and Pulse)
FCAW (Gas-Shielded, Self-Shielded)
SMAW (E6010, E6013 and E7018)
GTAW (with and without filler metal)
Multiple Filler material : E6013, E7018, E6010, ER70S-6, E71-1, E71-8, ER308LSi, ER4043
Multiple Welding techniques and Advance Welding Wave form
GMAW – STT (Approved Process in Malaysian Pipeline), GMAW – Pulse for Pipe, GMAW – Spray, GMAW – Pulse, FCAW-S
Multiple Transfer types
Welding Position: All positions 2F, 3F, 4F, 5F, 1G, 2G, 3G, 4G, 5G, 6G
Multiple Coupon (test specimen type) Practice Plate, Pad, Lap Joint, Tee Joint, Groove 3/8 in. (9.5 mm), Groove on 2 in. XXS Pipe (50 mm), Groove on 6 in. Sch 40 Pipe (150 mm), Pipe on Plate
Multi-pass Welds
Discontinuities shown in the weld and scoring.
Instant feedback on travel speed, work angle, travel angle contact tip to work distance/arc length and aim.
GTAW scoring additions: dip frequency, filler movement.
Weave scoring additions: weave timing, weave spacing, and weave width.
E6010 electrode scoring additions: whip timing, dime spacing, and puddle time.
Virtual Bend Test with certification, Simulates welding certification test
Removable VR Headset Feature
Welding WPS book - training curriculums, modules & manuals.
Included on USB with below soft copy book
K3205-1 First Edition-SMAW Welding Training Curriculum
K3206-1 First Edition-GMAW/FCAW Welding Training Curriculum
K4057-1 VRTEX Project Based Lesson 1-Student Workbook
K4057-2 VRTEX Project Based Lesson 1-Instructor Guide
Features:
Realistic puddle and actual welding sound helps welders learn to respond and adjust welding technique.
Simulates sparks, slag, grinding and weld cooling.
Welding discontinuities appear when improper welding technique is used.
Virtual bend test provides results instantly and reveals what causes a weld to pass or fail.
Demos of successful welds.
Replicates proper machine set-up using a Welding Procedure Specification. Students must select gas type, process, gas flow, amperage/voltage and wire-feed speed in the system.
Tracks and scores key weld parameters including work angle, travel angle, travel speed, distance and position.
Able to Link to U/LINC pre-built curriculum
Vrtex 360 with the package it come from USA including
Vrtex 360 Power Source CPU
22" Custom Touchscreen Monitor

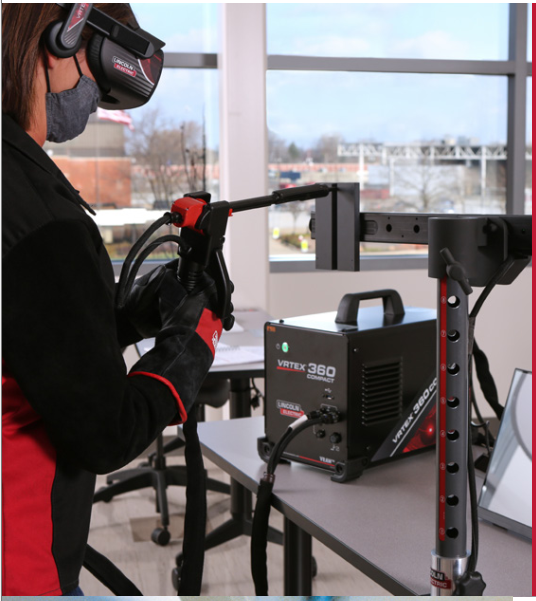

VR Headset
VR Welding Devices
GMAW / FCAW - MIG wire welding gun
SMAW - Retractable stick stinger GTAW
TIG torch and filler with adaptive foot pedal
7 different Welding Coupons
Adjustable Welding Pole for welding positions 0, 45-90 Degree Adjustable Table Clamp
Curriculum on a USB:
K3205-1 First Edition - SMAW Welding Training Curriculum
K3206-1 First Edition - GMAW/FCAW
Welding Training Curriculum
K4057-1 VRTEX Project Based Lesson 1 Student Workbook
K4057-2 VRTEX Project Based Lesson 1 Instructor Guide
Welding Procedure Specification Book for proper machine setup Parameter
Machine Manual book
Pen Drive
Hand Glove
T Shirt
Glass
