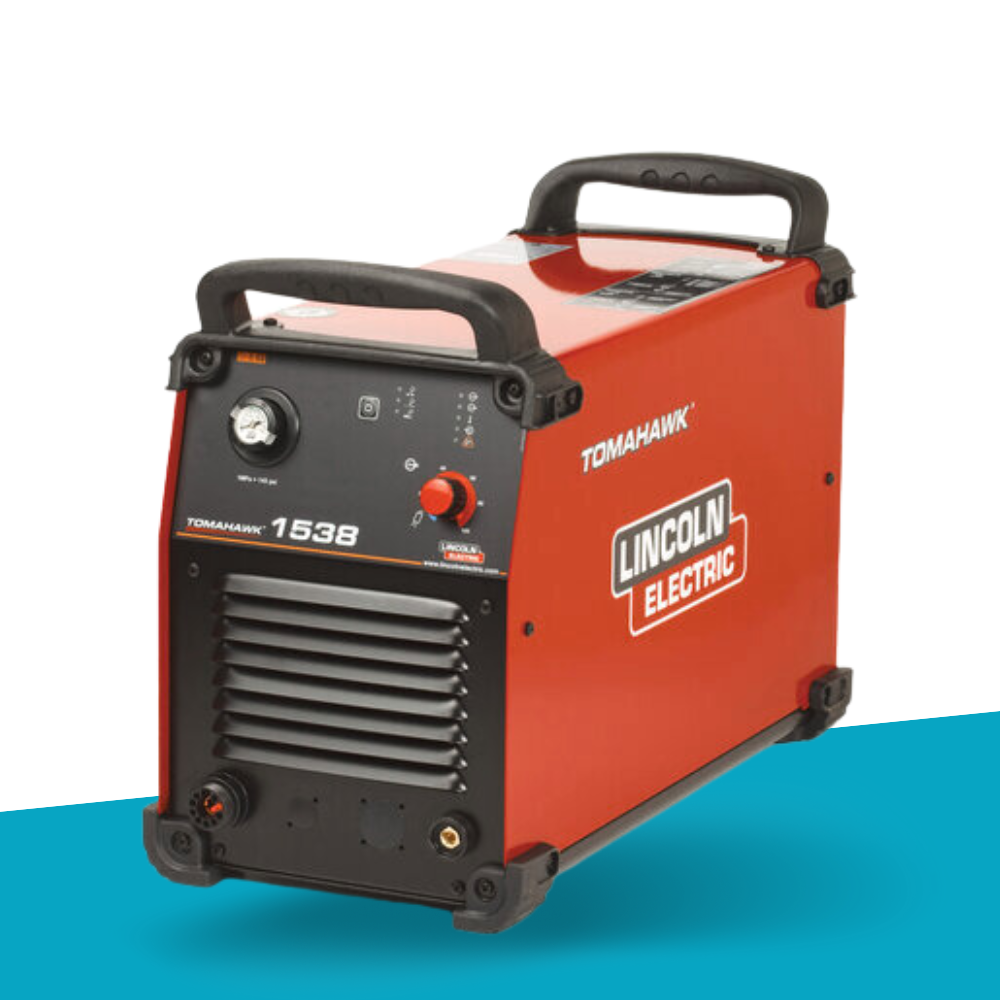

Lincoln Electric Tomahawk® 1538 Edu Model

Brand: Lincoln Electric

Model: Tomahawk® 1538

DETAILS

High performance plasma cutting machine: built to handle harsh environmental conditions, suitable for on-site operations with a generator or within a workshop environment.

Features

• Starting: innovative, advanced arc starting without HF.

• Performance: innovative, advanced electrode and nozzle design.

• Longer lifetime: innovative, advanced design increases lifetime of consumables.

• Faster: higher travel speeds and plate thickness.

• Flexible: multiple torch configurations.yDifferent materials: mild steel, stainless steel, aluminium and many more.

• Concentrated plasma stream: less heat input, less distortion.

Processes

• Plasma cutting (all)

• Plasma gouging

• Grid Mode

TECHNICAL SPECIFICATION:

Primary Voltage (50-60Hz)

• 415V/3Ph ±15%

Input Phase

• 3 Ph

Rated Output

       -100AV@40%
       - 60A@100%

Cutting Capacity

• 40MM

Piercing Capacity

• Max. 20

Flow Rate

• 280 ±20% l/min @ 5.5bar

Inlet Pressure

• 6,0 - 7,5 bar

Output Range (A)

• 20-100

Dimensions (H x W x D)

• 455 mm x 301 mm x 640 mm

Net Weight

• 34 kg

Accessories:

• 2 m input cable

• 7.5 m hand-cutting torch

• Ground clamp and cable

• Air connection kit

• Cutting torch consumables kit
