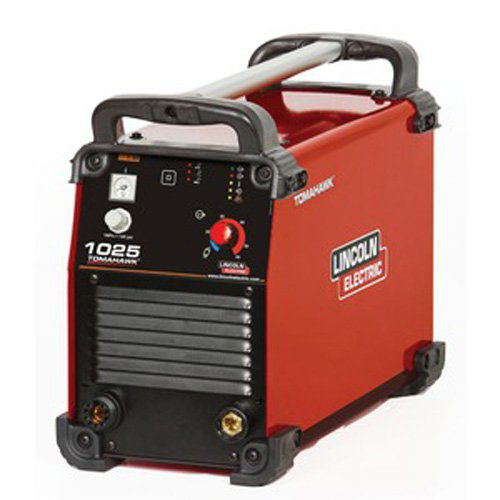

Lincoln Electric Tomahawk® 1025 Edu Model

Brand: Lincoln Electric

Model: Tomahawk® 1025

Machines Processes:

• Plasma Cut, Plasma Gouging, Grid mode

TECHNICAL SPECIFICATION:

• Primary Voltage (50-60Hz)

  • 415V/3Ph ±15%

• Input Phase

  • 3ph

• Rated Output

  • 60A/40% 40A/100%

• Cutting Capacity

  • 25MM

• Piercing Capacity

  •  Max. 12

• Flow Rate

  • 130 ±20% l/min @ 5.5bar

• Inlet Pressure

  • 6,0 - 7,5 bar

• Output Range (A)

  • 20-60

• Dimensions (H x W x D) - MM

  • 389 x 247 x 510

• Net Weight

  • 22

Features

• Starting: innovative, advanced arc starting without HF.

• Performance: innovative, advanced electrode and nozzle design.

• Longer lifetime: innovative, advanced design increases lifetime of consumables.

• Faster: higher travel speeds and plate thickness.

• Flexible: multiple torch configurations.yDifferent materials: mild steel, stainless steel, aluminium and many more.

• Concentrated plasma stream: less heat input, less distortion.

Accessories:

• 2 m input cable

• 7.5 m hand cutting torch

• Ground clamp and cable

• Air connection kit

• Cutting torch consumables kit
