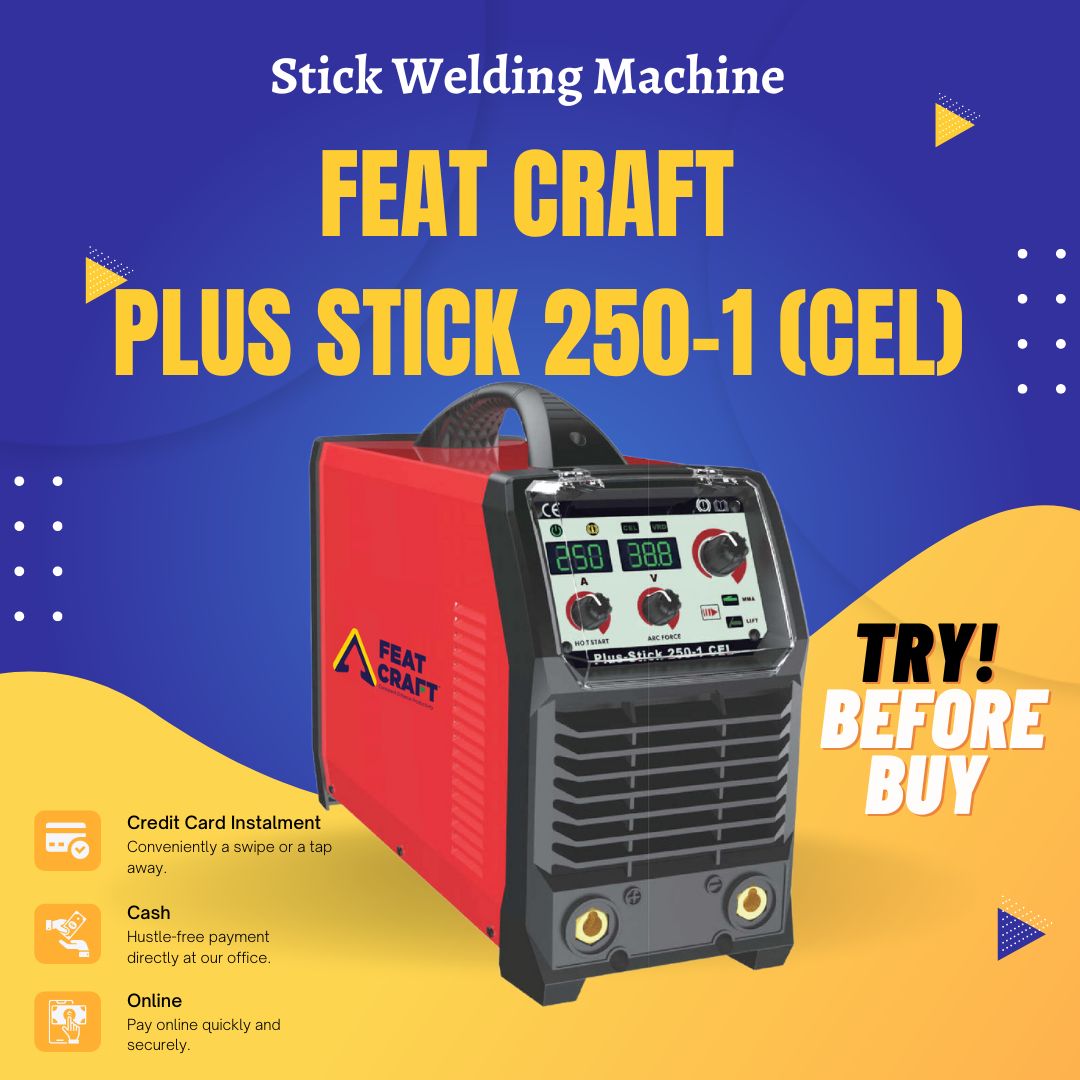

Feat Craft Plus Stick 250-1 (CEL) Stick Welding Machine

BRAND: FEAT CRAFT

MODEL: PLUS-STICK 250-1 (CEL)

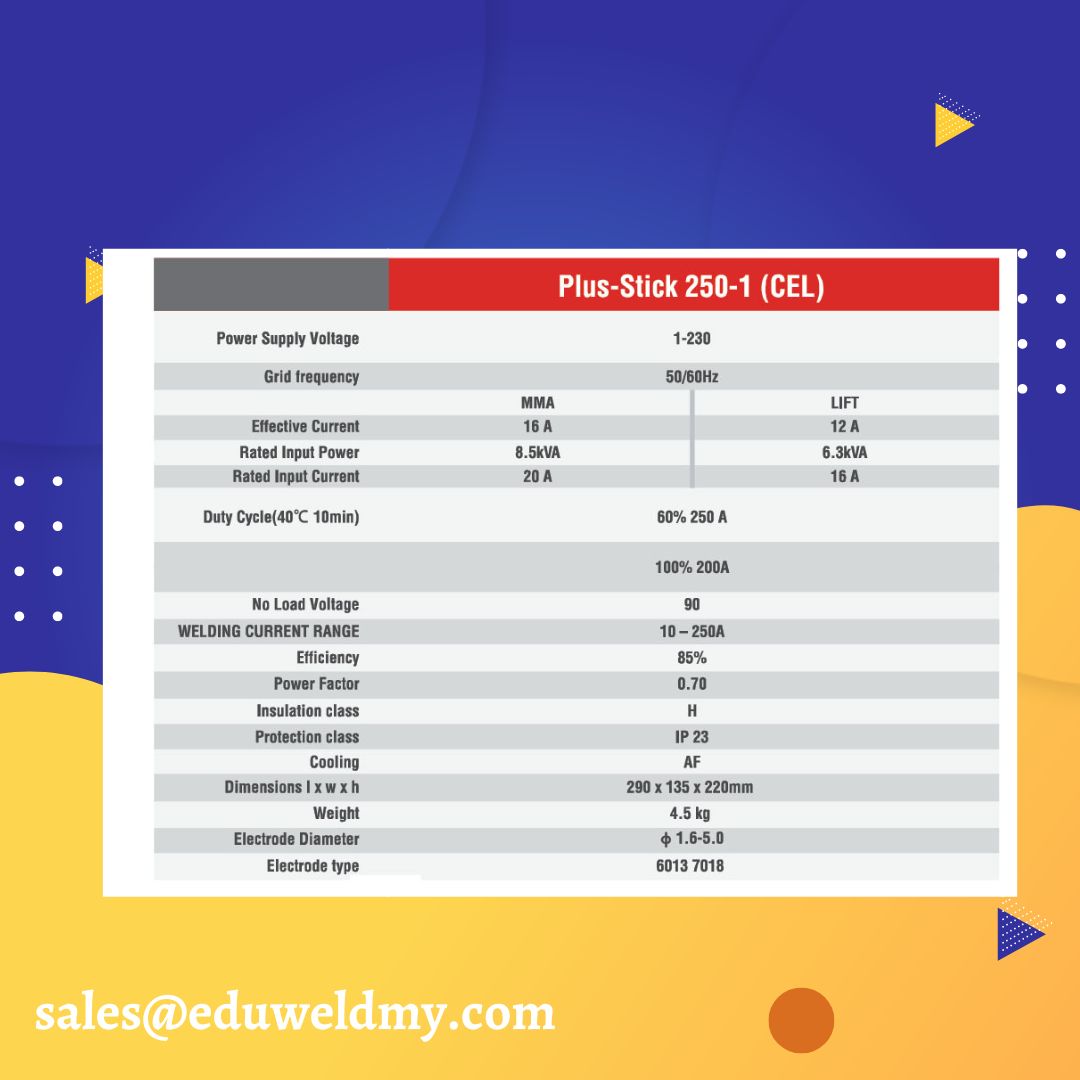

SPECIFICATION:

• Power Supply Voltage: 1-220V

• Frequency: 50/60Hz

• Duty Cycle(40°C 10min): 60% 250 A,

• WELDING CURRENT RANGE: 10-250A

• No Load Voltage: 90

• Efficiency: 85%

• Insulation class: H

• Protection class: IP 23

• Cooling: AF

• Dimensions L x W x H: 290 x 135x 220mm

• Weight: 4.5 KG

• Electrode type: 6013 / 7018

FEATURES:

1. When you have a wrong gird voltage, the machine will stop working immediately and the key core will be protected from damage, especially the IGBT.

2. Smart FAN-Reduce power consumption and the intake of dust and fumes.

3. Excellent performance on 60% electrodes.

4. When the "V.R.D" mode on the output voltage is only 14.5V, it's absolutely safe for welders.

5. Digital control system-the welding parameters can be controlled easier and more precisely.

6. Generator Friendly- Suitable for use with generators.

7. 440V TESTED In Production

8.  Standard 1-230V 50/60Hz power supply.

9. Heavy Duty Cycle 60%

MACHINE C/W:

1. 3M 16MM² EARTH CABLE

2. 4M 16MM² ELECTRODE HOLDER

3. Heavy Duty 4 Wheel Trolley

   ✅ Note: Feat Craft machine comes with Calibration and Validation report according to ISO 60974

   ✅ Machine Warranty: 2 Years

   ✅ Machines come with parts obtainable guarantee:-  Machine spare parts available for 10 years

   ✅ Come with maintenance training

   ✅ Schedule maintenance inspection for next 2 years
