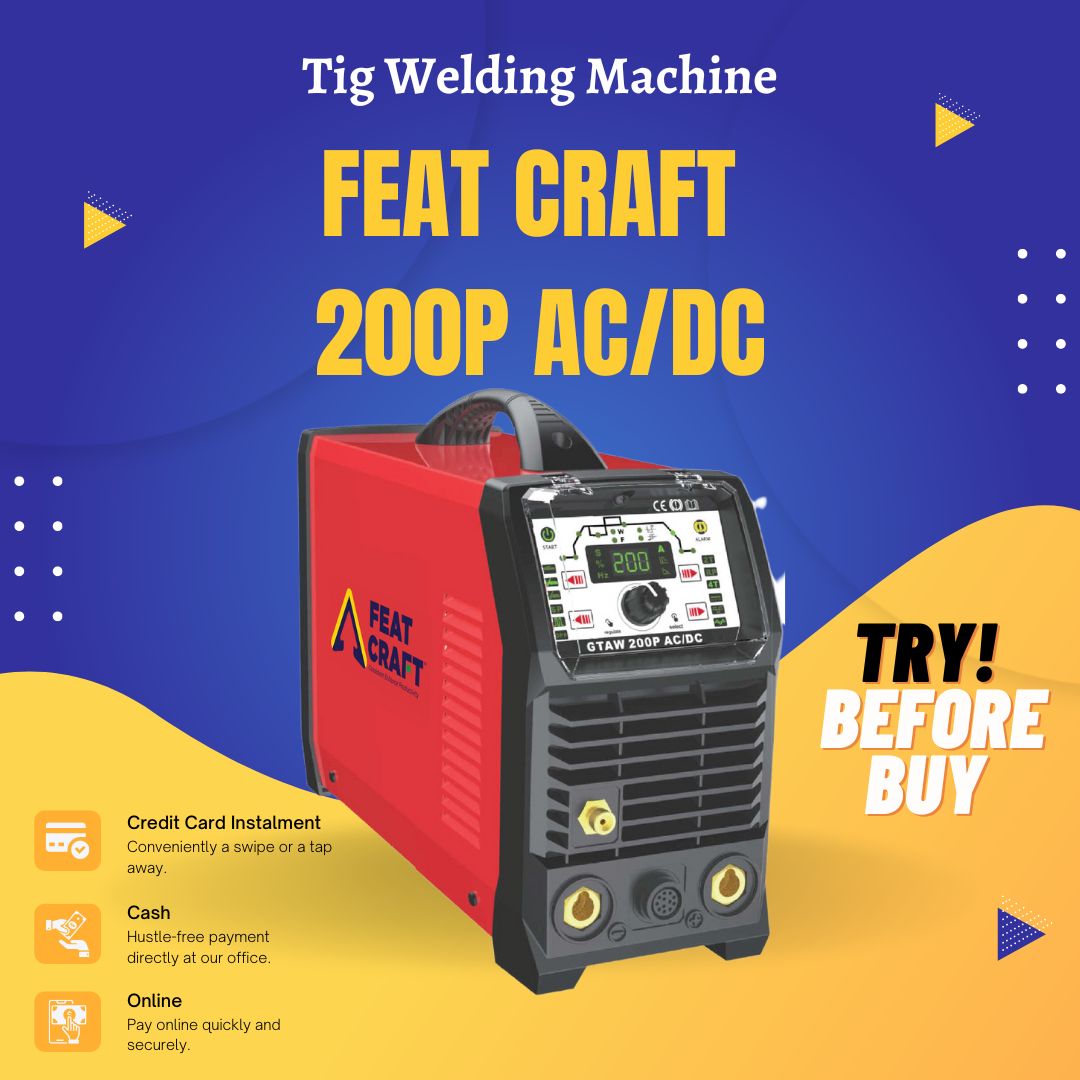

Feat Craft GTAW 200P AC/DC TIG Welding Machine

BRAND: FEAT CRAFT

MODEL: GTAW 200P AC/DC

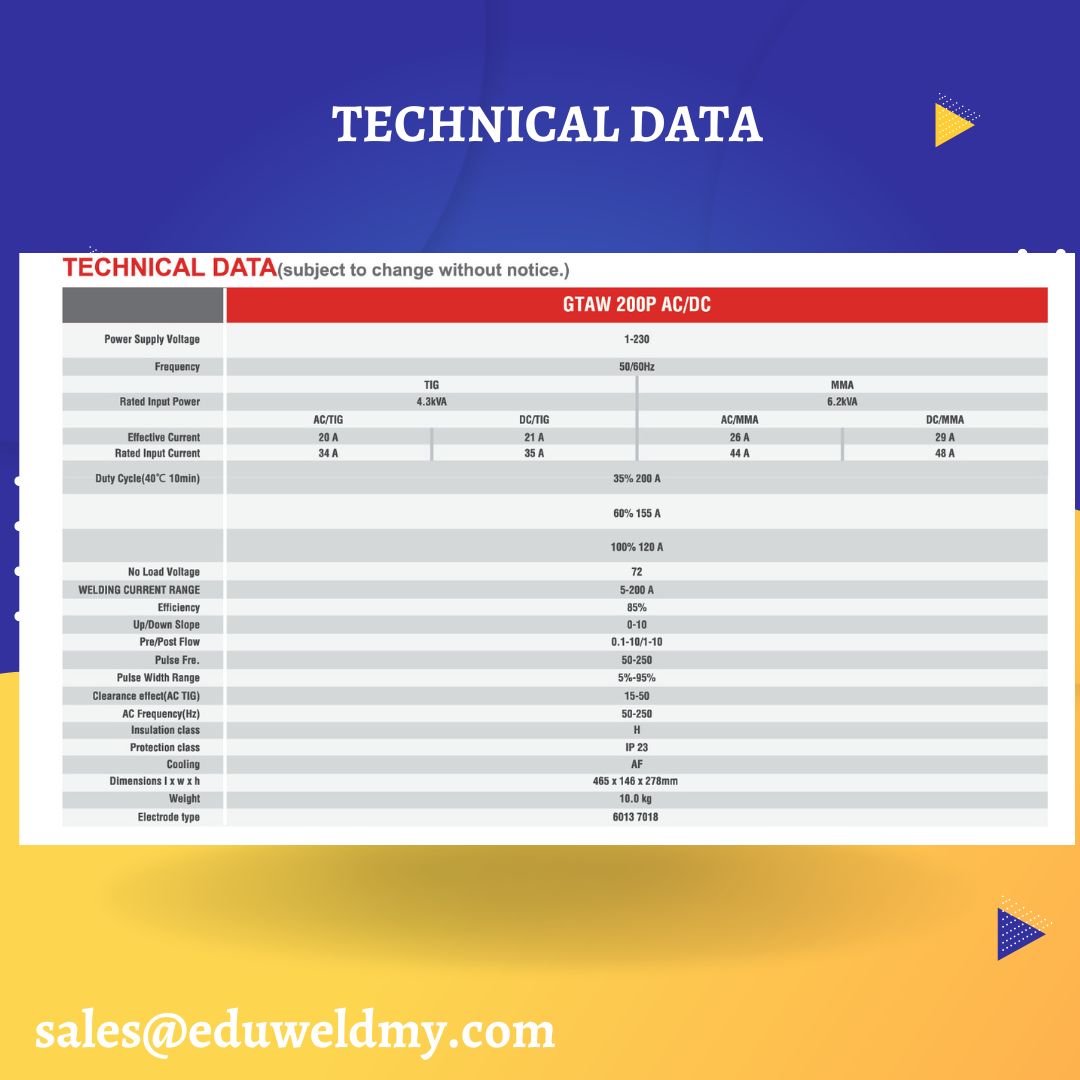

SPECIFICATION:

• Power Supply Voltage: 1-220V

• Frequency: 50/60Hz

• Duty Cycle(40°C 10min): 35% 200A, 60% 155A

• WELDING CURRENT RANGE: 5-200A

• No Load Voltage: 72

• Efficiency: 85%

• Insulation class: H

• Protection class: IP 23

• Cooling: AF

• Dimensions L x W x H:465x 146x 278mm

• Weight: 10.0 KG

• Electrode type: 6013 / 7018

FEATURES:

1. When you have a wrong gird voltage, the machine will stop working immediately and the key core will be protected from damage, especially the IGBT.

2. Smart FAN-Reduce power consumption and the intake of dust and fumes.

3. Digital control system-the welding parameters can be controlled easier and more precisely.

4. Generator Friendly- Suitable for use with generators.

5. 440V TESTED In Production

6.  Standard single phase 1-230V 50/60Hz power supply.

7. Heavy Duty Cycle 60%

8. Rotentiometer remote control torch

9. HF Easy ARC striking

10. Up/Down Remote control torch

11. Pulse

12. Foot Control Contractor - on/off and current control with 8-pin male plug and any length cable or wireless control.

MACHINE C/W:

1. TIW-26 TIG TORCH X 25FT

2. TIW EARTH LEAD X 13FT

3. TIW ELECTRODE HOLDER X 13FT

4. ARGON REGULATOR

5. RUNNING PARTS

6. Heavy Duty 4 Wheel Trolley

✅ Note: Feat Craft machine comes with Calibration and Validation report according to ISO 60974

✅ Machine Warranty: 2 Years

✅ Machines come with parts obtainable guarantee:-  Machine spare parts available for 10 years

✅ Come with maintenance training

✅ Schedule maintenance inspection for next 2 years

🔽 CATALOG DOWNLOAD HERE
