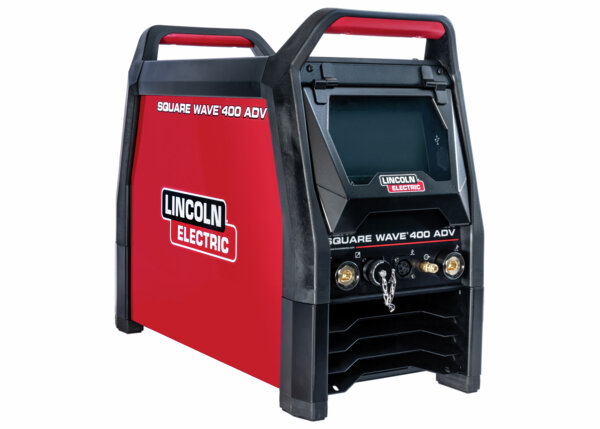

Square Wave® 400 ADV
TIG WELDING MACHINE
Brand: Lincoln Electric
Model: SQUARE WAVE® 400 ADV
Specification
INPUT : 400V ±15%, 3-Ph 50/60Hz, generator ready
OUTPUT : 400A@60% / 300A@100%
EMC class : A
Weight (kg) : 41
Dimensions H x W x D (mm) : 509 x 294 x 624
Protection class : IP23
ECO friendly: Idle power 23W and efficiency 85%
PROCESSES
TIG, TIG Puls, MMA & CAG (Gouging)
TIG manual & Synergic
MMA manual & Synergic Pulse
Premium Cellulosic 6010 Stick capability
FEATURES
Light weight – 41 kg
7” TFT LCD color display
Intelligent F.A.N. (Fan As Needed)
Customer Support on User Interface
USB Connectivity
Voltage Reduction Device (VRD)
Calibration procedure
Industrial grade: IP23,
AC Frequency – 40-400 Hz
Soft/Medium/Hard/ pulse
Simple automation interface (A1)
MACHINE C/W
• arcweld® TIG Torch x 8m
• Input cable 4 m
• Gas hose 1.5 m
• Ground cable with clamp 5 m
• Metallic clips to fix the hose
• USB key with user manual
• Quick Start papers
• Front UI protection cover
• Heavy Duty 4 wheel Cart
