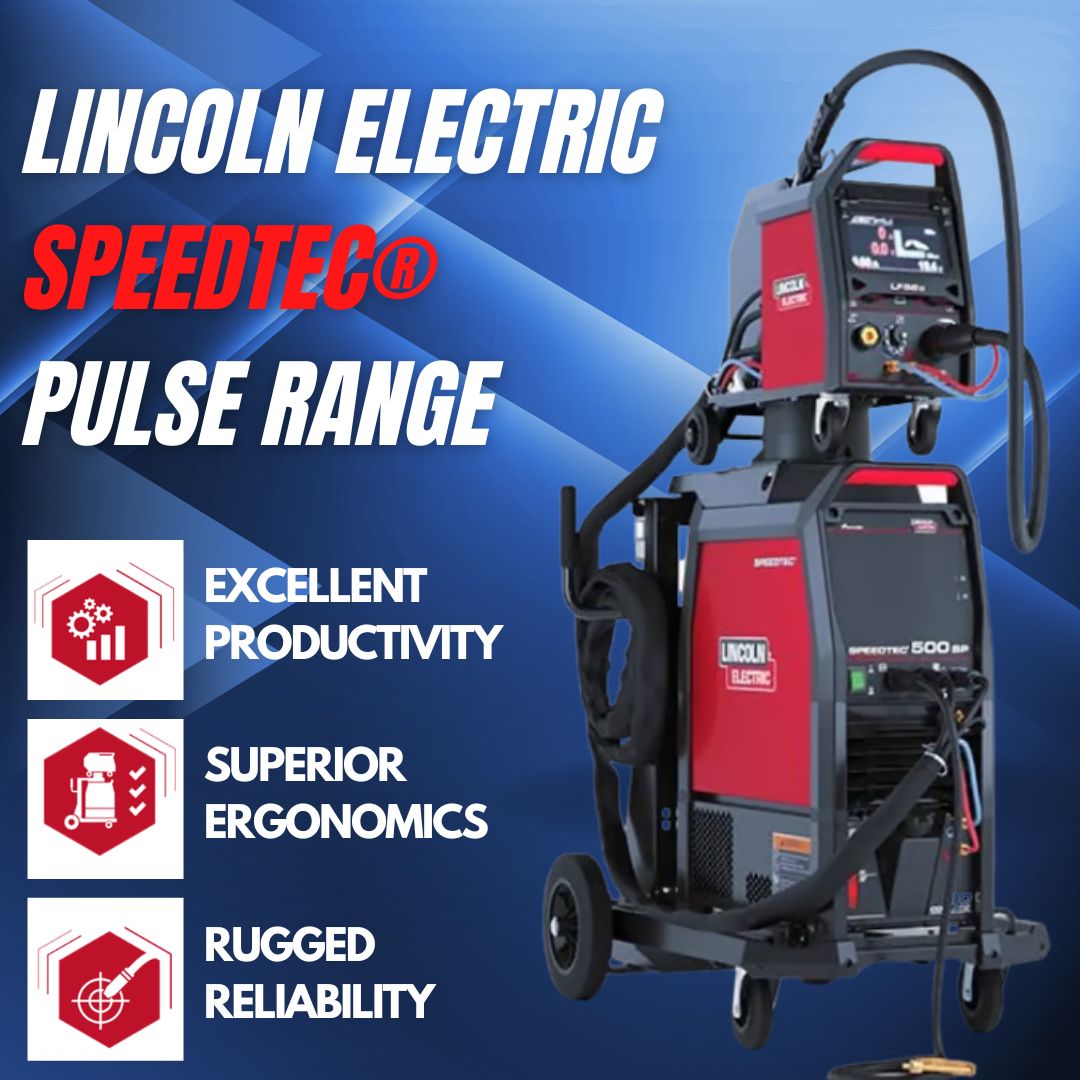

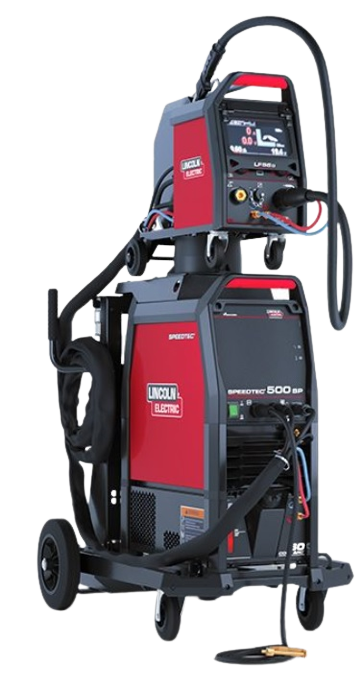

Lincoln Electric Speedtec® Pulse Range Welding Machine Edu Model

Brand: Lincoln Electric

Model: Speedtec® 500SP + LF-56D Digital Feeder

Machines Processes:

1. Stick (SMAW)

2. Gouging (CAC-A)

3. Flux-Cored (FCAW)

4. MIG (GMAW)

5. Flux-Cored Self-Shielded (FCAW-S)

6. Flux-Cored Gas-Shielded (FCAW-G)

7. Metal-cored Wire (GMAW-C)

8. MIG Blazing

Special Waveform:

• Speed Short Arc™ (SSA™)

• Soft Silent Pulse™ (SSP™)

• High Penetration Speed™ (HPS™)

• MechaPulse™

Features

• High duty cycle multi-process power source

• High Efficiency Processes (Speed Short Arc™, Soft Silent Pulse™, High Penetration Speed™)

• MECHAPULSE™ produces very high quality welds with rippled seam appearance.

• Modular concept to build configuration for any requirements

• Double-side fully potted PCB with superior resistance for dust, humidity, jerk or vibration

• increased penetration with faster travel speeds

• Premium arc performance with repeatable arc ignition, excellent arc stability and rapid parameter adjustment.

• Innovative, intuitive interface: easy settings, simple navigation, multi-language.

• Perfect feedability: optimized wire positioning, four driven rolls and inspection window.

• Designed with welders for welders: perfect handling, innovative and easy communication.

• Ready for the heaviest industrial conditions

• Fully featured Synergic and Manual MIG, Clock & Calender, LED Lighting, Speaker, Auto settings, adjustable functions, Memory, TFT 7’ color screen, Locking function / Limits / Memories / Jobs, USB connectivity.

• Intelligent F.A.N. (Fan As Needed)

• Synergic Control

TECHNICAL SPECIFICATION:

Input Voltage

• 400V

Input Current

• 32A

Input Hertz

• 50/60 Hz

Input Power

• 400V/3/50-60 Hz (±15%)

Input Phase

• 3 Ph

Mode Icon

• CC/CV

Output Range

• 20-500A

Polarity

• DC

Rated Output

• 500A@60%, 420A@100%

EMC Class

• A

Protection class

• IP 23

Dimensions (H x W x D)

• 625 x 295 x 550mm

Net Weight

• 71 kg

Max Rating

• 500A

Open Circuit Voltage

• 65V

Rated Gouging Carbon Diameter

• 5/16" (8.0 mm)

Machines Communication Technology

• Digital

Wire Feeder Supply Voltage

• 40VDC

Work Lead Connector Type

• Dinse

Machine C/W:

• MS MIG Air Cool Torch x 4m

• MS Earth lead x 3m with G Clamp

• MS Regulator

• Gas Hose

• Input Power Cable x 5m

• Gas Connection kit

• 4 Wheel Trolley with Handle

• Drive roll for solid wire 1.0-1.2mm and Flux Core roll 1.2mm

• Operation Manual Book

• Pen-Drive in Service and Maintenance Book
