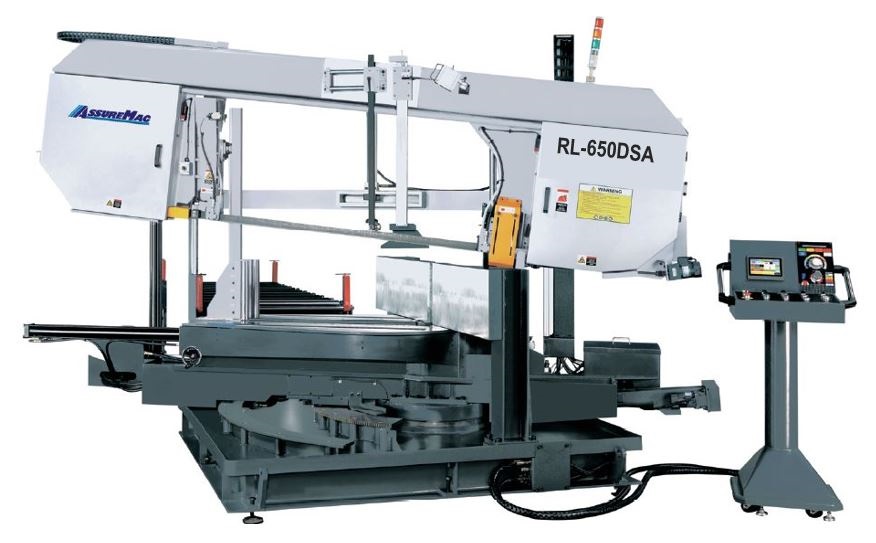

RL-650DSA - ASSUREMAC Double Mitre Cutting | RL Series

Features:

• H 650 W 1100

Specification

Capacity 90° (H x W)

• 650 mm

• 650 x 1100 mm

Capacity L60° (H x W)

• 400 mm

• 400 x 650 mm

Capacity R/L45° (H x W)

• 650 mm

• 650 x 650 mm

Blade Motor

• 10 HP (7.5kw) x 4P

Hydraulic Motor

• 3HP (2.2kw)

Brush Motor

• 60 W

Blade Size

• 54 x 1.6 x 8730 mm

Coolant Pump

• 1/4 HP (0.19kw)

Blade Speed

• 30-110 mpm

Hydraulic Tank

• 75 L

Coolant Tank

• 30-110 mpm

Packing Size

• 4550 x 2270 x 2560 mm

N.W./G.W.

• 5200 Kg

Table Height

• 830MM

STANDARD FEATURES

• Quickly down material feeler

• Hydraulic blade tension

• Motor driven chip brush

• Motor inverter control the blade speed

• Cutting start noise abatement device

• Abnormal warning showing on screen

• Blade guide arm auto-moving

• Hydraulic carbide guides device

• Blade tilt 6.5 ˚ for section steel or steel plate easy cutting

• Set angle cutting (R/L45˚ L60˚) on screen and auto-swiveling

• Swiveling drive by servo motor and brake position by hydraulic rake

• Vise pressure regulator

OPTIONAL EQUIPMENT

• Hydraulic vertical press vise

• Roller stand

⬇
