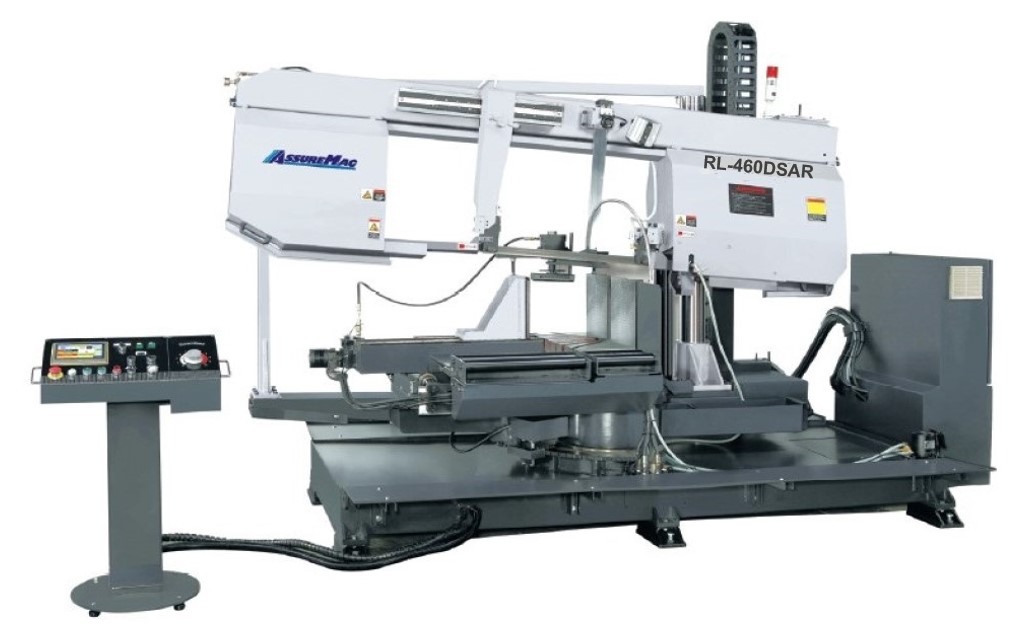

RL-46DSAR - ASSUREMAC DOUBLE MITRE CUTTING | RL Series

Features:

• H 460 W 820

Specification

Capacity 90° (H x W)

• 460 mm

• 460 x 460 mm

• 420 x 820 mm

Capacity L60° (H x W)

• 350 mm

• 330 x 330 mm

• 280 x 460 mm

Capacity R/L45° (H x W)

• 460 mm

• 420 x 420 mm

• 420 x 550 mm

Blade Motor

• 7.5 HP

Hydraulic Pump

• 2 HP (1.5kw)

Coolant Motor

• 1/6 HP (0.12kw)

Blade Size

• 41 x 1.3 x 6185 mm

Blade Speed

• 30-85 mpm

Hydraulic Tank

• 38 L

Coolant Tank

• 121L

Packing Size

• 3610 x 1690 x 2150 mm

N.W./G.W.

• 2100 kg

Table Height

• 760MM

STANDARD FEATURES

• Quickly down material feeler

• Hydraulic blade tension

• Set angle cutting (R/L45° L60°) on screen

• Motor inverter control blade speed

• Vise sear auto-movement

• Blade tilt 5° for section steel or steel plate easy cutting

• Vise pressure regulator

OPTIONAL EQUIPMENT

• Hydraulic vertical press vise

⬇
