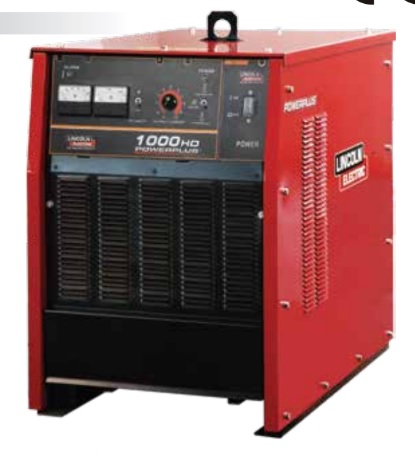

Lincoln Electric POWERPLUS® 1000HD SAW Welding Machine

Brand: Lincoln Electric

Model: POWERPLUS® 1000HD

Specification:

• Input Power: 415V(±10%)/3Ph/50HZ/60HZ

• Rated Output Current/ Duty Cycle:

  • 1200A/44V@ 60%

  • 1000A/44V@ 100%

• Output Range: 200-1200A

• Input Power @Rated Output: (KW) 69 @ 100%

• Dimensions H×W×D (mm): 900 x 600 x 970

• Net

  Weight (Kg): 335

• Process:

  • Submerged Arc

  • Gouging

Features:

• Precise output control results in a stable arc.

• Ability to preset the current.

• Line voltage compensation maintains consistent welding within ±10% variation.

• 1000A @100% duty cycle with a maximum output capacity of 1200A.

• 500 amps output terminal enhances low current arc characteristics.

• User-friendly operation panel with analog meters to display current and voltage while welding.

• Can be stacked up to two machines high to save on floor space.

Machine C/W:

• Rover Tractor X 15 Meter (Black )

• Control Cable X 15 Meter (Black Heavy Duty)

• Ground Cable X 5 Meter (Black)

• Input Cable X 3 Meter
