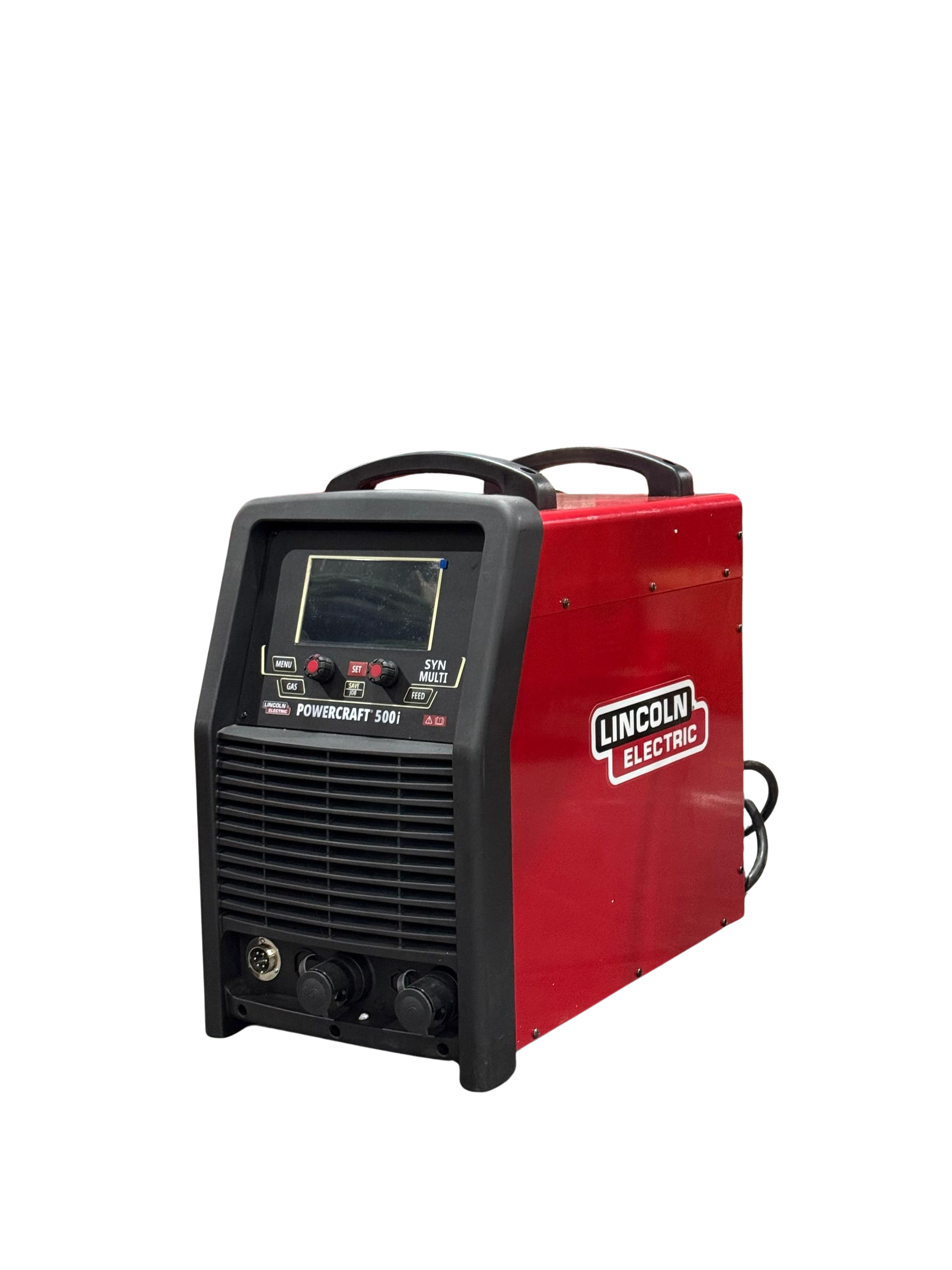

Powertec Craft i500
MIG Welding Machine
Brand: Lincoln Electric
Model: Powertec Craft i500
Features :
Premium welding behaviour on CV MIG & CC Stick welding
Ready for the heaviest industrial conditions
Synergic capability
Optimised ergonomics, Lincoln reliability
Fan as needed
Designed for training application under diverse and demanding conditions
Two controls, one button for easy navigation
Icon language for key commands
Easy process and settings selection
7” Color Display
High production efficiency
Digital welding current control
True HD tested – made for the harsh environmental conditions
Specifications:
Machines Processes : MIG (GMAW), (FCAW), Stick (SMAW), TIG (GTAW)
Open Circuit Voltage : 83V
Input Current : 33A
Input Hertz : 50/60 Hz
Input Phase : 3 ph
Input Power : 415V/3/50-60 Hz
Mode Icon : CV/CC
Output Range : 20-500A
Polarity : DC
Dimensions HxWxL (mm) : 575 x 340 x 650
Weight : 40kg
Protection Class : IP23
Machine C/W:

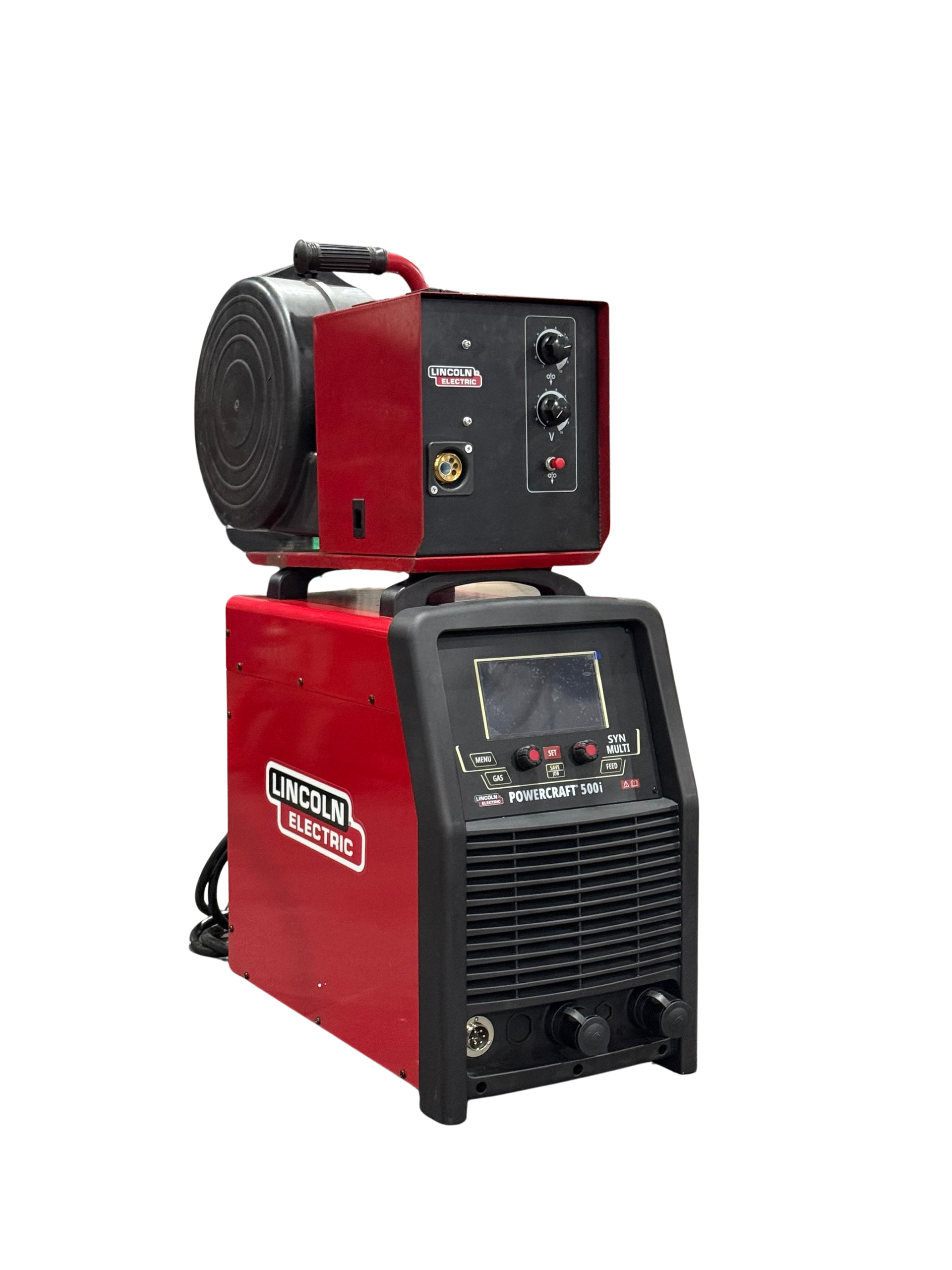

Standard LF feeder Euro x 5m
MS MIG Air Cool Torch x 4m
MS Earth lead x 3m with G Clamp
MS Regulator
Gas Hose
Input Power Cable x 5m
Gas Connection kit
4 Wheel Trolley with Handle
Drive roll for solid wire 1.0-1.2mm and Flux Core roll 1.2mm
Operation Manual Book
Pen-Drive in Service and Maintenance Book
