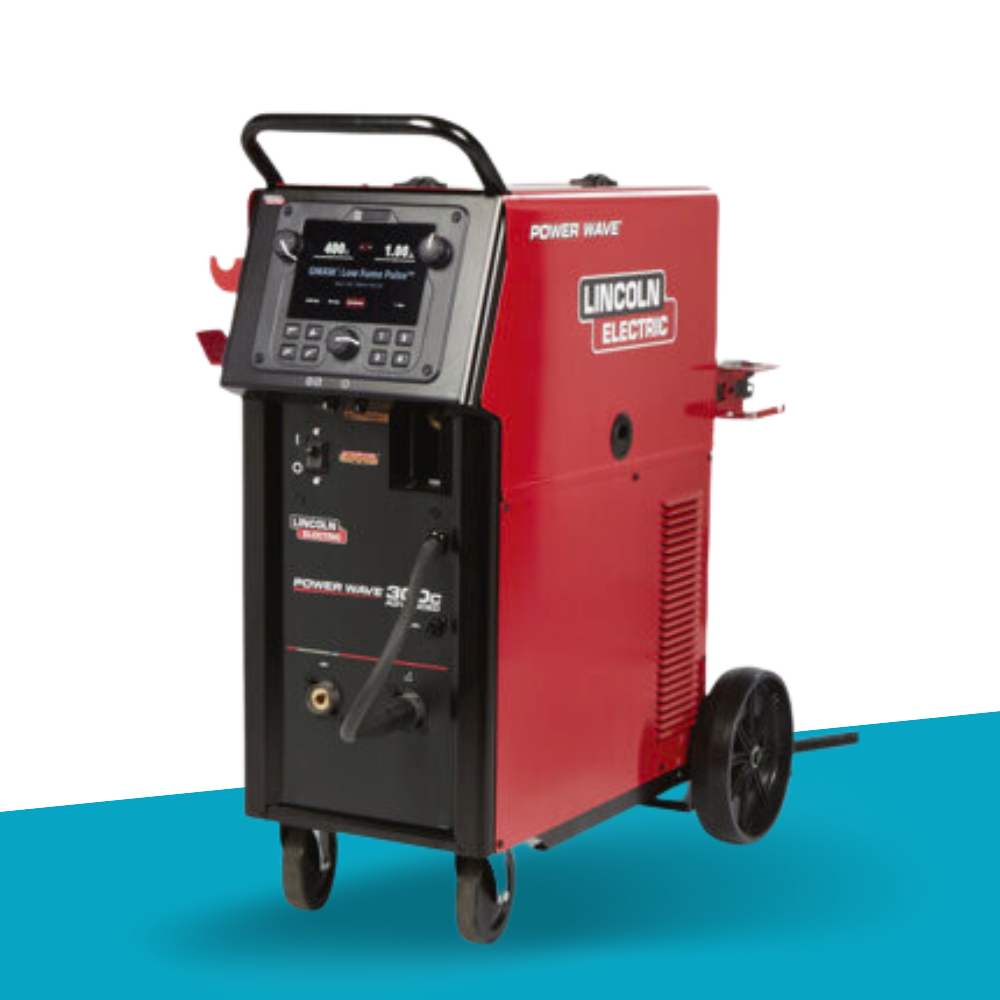

Lincoln Electric Power Wave® 300C Advanced Process Welder EDU MODEL
Advanced Process Welder
Inquiry Now :sales@eduweldmy.com
Brand: Lincoln Electric
Model: Power Wave® 300C Standard
Specification:
Input Voltage 415/460/575/1/3/50/60
Input Current 3ph /1ph / 40% Duty Cycle: 44/40/25/20/16.5, 3ph /1ph/ 100% Duty Cycle: 35/32/19.5/16/14
Input Hertz 50/60
Input Phase 1/3 ph
Input Power 208/230/380/415/460/575/1/3/50/60
Mode Icon CC/CV
Output Range 5-350A
Polarity DC
Rated Output 100% - 35/32/19.5/16/14
Machines Processes:
Stick (SMAW)
Gouging (CAC-A)
Flux-Cored (FCAW)
TIG (GTAW)
MIG (GMAW)
Pulsed MIG (GMAW-P)
Dimensions H x W x D in (mm): 39.67 x 20.65 x 39.60 (1007.6 x 524.5 x 1005.8)
Net Weight lb (kg): 193 (87.5)
Features:
Best-in-Class Performance - Industry’s only true 300 Amp, 100% Duty Cycle, All- Process Machine.
All-Process Versatility - SMAW, GTAW, GMAW, FCAW, CAG processes
Advanced Connectivity and Control - All Power Wave systems come standard with access to Lincoln Electric Power Wave Manager and Lincoln Electric Checkpoint® Production Monitoring allowing for advanced remote configuration, process control, and quality assurance.
Patented PowerConnect® Technology - Automatically adjusts to input power from 200-600V, 50 or 60 Hz, single phase or three phase. Welding output remains constant through the entire input voltage range.
Tribrid® Power Module - Exceptional welding performance with high power factor and efficiency.
Optional 115V (10A) AC Duplex Auxiliary Power Receptacle - Features Surge Blocker™ Technology to ensure simultaneous welding performance is not compromised by high starting current devices such as grinders (typically requiring 60A or more peak surge current).
Ready-to-Run™ - Design features for simple and straightforward operation, including cable management hooks, integrated cart with tilting bottle rack, and Twist-Mate™ TIG connection and gas solenoid.
Smart Fan Operation - Only runs when needed to minimize noise and energy consumption.
Applications
General Fabrication, Education
