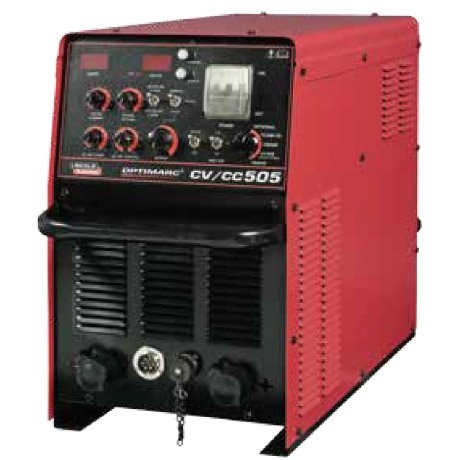

Lincoln Electric Optimarc CVCC505 Multi Process Welding Machine - EDU MODEL

Brand: Lincoln Electric

Model: OPTIMARC® CV/CC 505

Features

• Synergic function, preset voltage is matched with current automatically. Both current and voltage are pre-settable

• Light weight and Portable - easy to move

• Toughness. Test to strict IP 23 Classifications-designed for “Real” industrial conditions

• “Made To Last” PC Boards

• “Trayed & Potted” PCB’s filled with epoxy double locked and environmentally protected wiring harness connectors

• Boards are carefully located to provide maximum protection from the environment

• A five position switch for welding process mode selection enabling the operator to easily select his chosen welding output for his specific welding application.

Specifications:

Dimensions (H x W x D):

540 x 340 x 800 (MM)

Net Weight:

47 kg

Machines Processes:

• GMAW,

• FCAW,

• GTAW (TIG),

• SMAW (STICK)

Input Voltage:

415V(±10%) /3/50 or 60 Hz

Input Current:

15

Input Hertz:

50/60

Power input at rated output (KVA)

23 @ 60%

Input Phase:

3ph

Mode Icon:

CC/CV

Output Range:

1. SMAW:

   • 20.6-40V 15-500A

2. GMAW:

   • 16~39V

     50~500A

3. GTAW:

   • 10.2~30V

     5~500A

Polarity:

DC

Rated Output:

1. SMAW

   • 500A/40V/60%

   • 390A/35.6V/100%

2. GMAW

   • 500A/39V/60%

   • 390A/33.5V/100%

3. GTAW

   • 500A/30V/60%

   • 390A/25.6V/100%

Thermal Overload Protection:

Yes

Accessories:-

1. LWF®-34GS Feeder (Four Rollers Drive, Drive Structure And Wire Reel Protected, Euro Syle Connection) X 5 Mtr

2. Mig Torch,

3. Heater Regulator

4. Earth Lead

5. Gas Hose & 2 Pcs Clips

6. Electrode Holder - 3 Mtr

Invest in the Lincoln Electric Optimarc CVCC505 Multi Process Welding Machine - EDU MODEL, and take your welding projects to new heights with its advanced features, portability, and durability.
