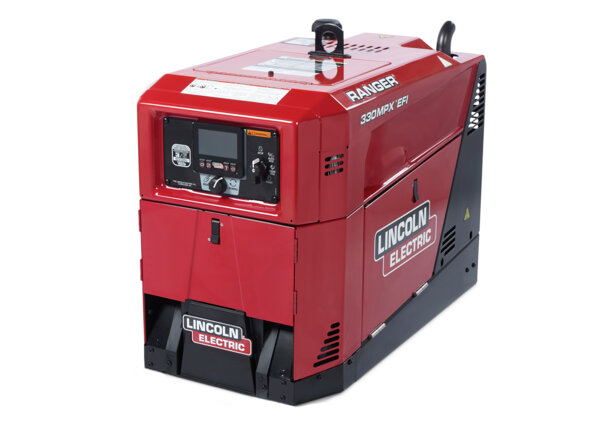

Lincoln Electric Ranger® 330MPX™ EFI Engine Driven Welder (Kohler®) -EDU MODEL

Brand: Lincoln Electric

Model: Ranger® 330MPX™

Specifications:

• Product Weights & Dimensions

  • Dimensions (H x W x D)26 in x 20 in x 36 in (660 mm x 508 mm x 914 mm)

  • Net Weight446 lbs (202 kg)

• Machines Processes

  • Stick (SMAW)

  • Gouging (CAC-A)

  • TIG (GTAW)

  • MIG (GMAW)

  • Flux-Cored Self-Shielded (FCAW-S)

  • Flux-Cored Gas-Shielded (FCAW-G)

• IEC Rating

  • 292A/31.7V/100% @ 104°F (40°C)

• Max Rating

  • 330A/28V/100% @ 104°F (40°C)

• Output Range by Mode

  • CC-Stick: 35 – 330 A

  • Downhill Pipe (CC): 25-330 A

  • Touch Start TIG: 25 – 330 A

  • CV-Wire: 14 – 40 V

  • Arc Gouging: 90 – 330 A

• Rated Gouging Carbon Diameter

  • 3/16 in (5.0 mm)

Engine Driven Welders

• Single Phase Auxiliary Output





  • 10,000 Watts Continuous, 120/240V

• Auxiliary Output Frequency

  • 60 Hz

• Receptacle Types

  • NEMA 5-20R

  • NEMA 6-50R

  • NEMA 14-50R

• Engine Brand & Model

  • Kohler OHV Command ECH740

• Engine Description

  • 2 Cylinder Air-Cooled Gasoline Engine

• Engine Horsepower

  • 25 HP

• High Idle Operating Speed @ Rated Output

  • 3600

• Fuel Tank Size (US gal.)

  • 11

• Fuel Tank Size (L)

  • 41.6

• Oil Capacity (qts.)

  • 2.0

• Oil Capacity (L)

  • 1.9
