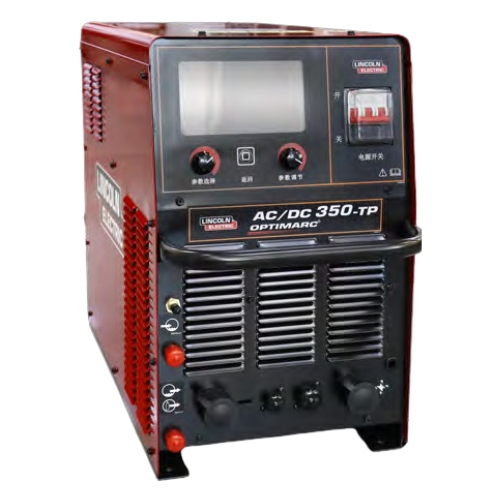

Lincoln Electric Optimarc AC/DC 350-TP
Brand: Lincoln Electric
Model: Optimarc AC/DC 350-TP
Top Features
★ 7 inch full-color high-contrast LCD screen
★ Wider output current range 4-350A
★ DC pulse range 0.2-2000Hz delivers stable and focused arc performance
★ Parameter memory of 10 slots convenient to on-site operation
★ Start current can be up to 200% ofwelding currentfor bead pr consistently
★ Excellent stick performance, arc force and hot start are adjustable
★ Comply with Lincoln Electric global design standard. Robust outer casing is
applicable to even harsh working environment.
★ AC MMA and TIG with Square Wave, Sine Wave, Triangular Wave
Processes
• Stick AC
• Stick DC
• Tig HF AC Pulse
• Tig HF DC Pulse
• Lift TIG AC Pulse
• Lift TIG
• DC Pulse
Specification:
• Input Power : 415V/3/50/60
• Rated Output : 350A/34V@/40%
• 250A/30V@100%
• Output Range : 50-350A
• Dimensions (H x W x D) : 540 mm x 340 mm x 800 mm
• Net Weight : 56 kg
Machine C/W:
• arcweld® TIG Torch x 8m
• 3M Input cable no plug
• 3M Welding cable with electrode holder
• 3M Ground cable with earth clamp
• 3M Gas hose with connector and hose clamps
• Heavy Duty 4 wheel Cart
