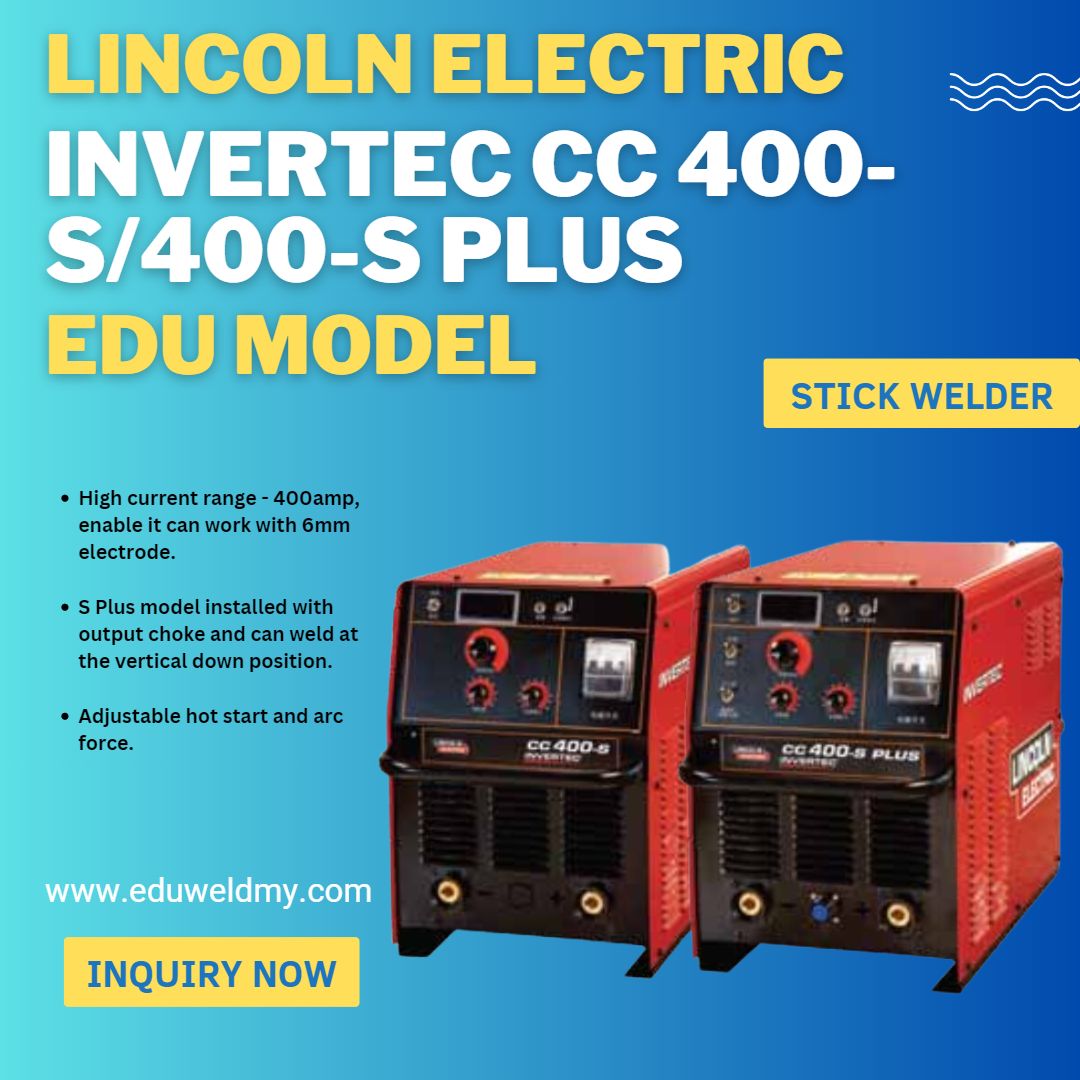

Lincoln Electric Invertec® CC 400-S/400-S Plus - EDU MODEL
Stick SMAW Machine DC
Brand: Lincoln Electric
Model: Invertec® CC 400-S/400-S Plus
Processes: DC Stick, Touch Start Tig
TECHNICAL SPECIFICATION:
Product Name:
Invertec® CC 400-S Plus
Input Power:
380V-415V (±10%)/ 3Ph/50HZ/60HZ
Related Output Current/ Duty Cycle:
400A/36V/60% 310A/26V/100%
Input power @ Rated Output(KW):
17@60%
Output Range:
10-400A
20.4-36V
Dimensions H x W x D:
480 x 350 x 730 MM
Weight:
36 KG
Advantage Lincoln
High current range - 400amp, enabling it can work with a 6mm electrode.
S Plus model installed with output choke and can weld
at the vertical down position.
Adjustable hot start and arc force.
Touch Start TIG makes it easy to achieve a great arc
start with minimal or no tungsten contamination.
Extended cable up to 100m (350A, 700mm²) is
suitable for long-distance welding. Convenient operation interface with digital amperage and voltage meter.
Overheating detection and fault alarm function.
The remote control system enables the S Plus machine to control the output current remotely.
Built to IP23 classification, ensures reliability in harsh
and demanding environmental conditions.
Machine C/W:
MS Electrode Holder 500A x 4m Black 100% Copper welding cable
MS Earth clamp 500A x 3m Black 100% Copper welding cable
Input Power Cable x 3m
4 Wheel Trolley with Handle
Operation Manual Book
Pen-Drive in Service and Maintenance Book
