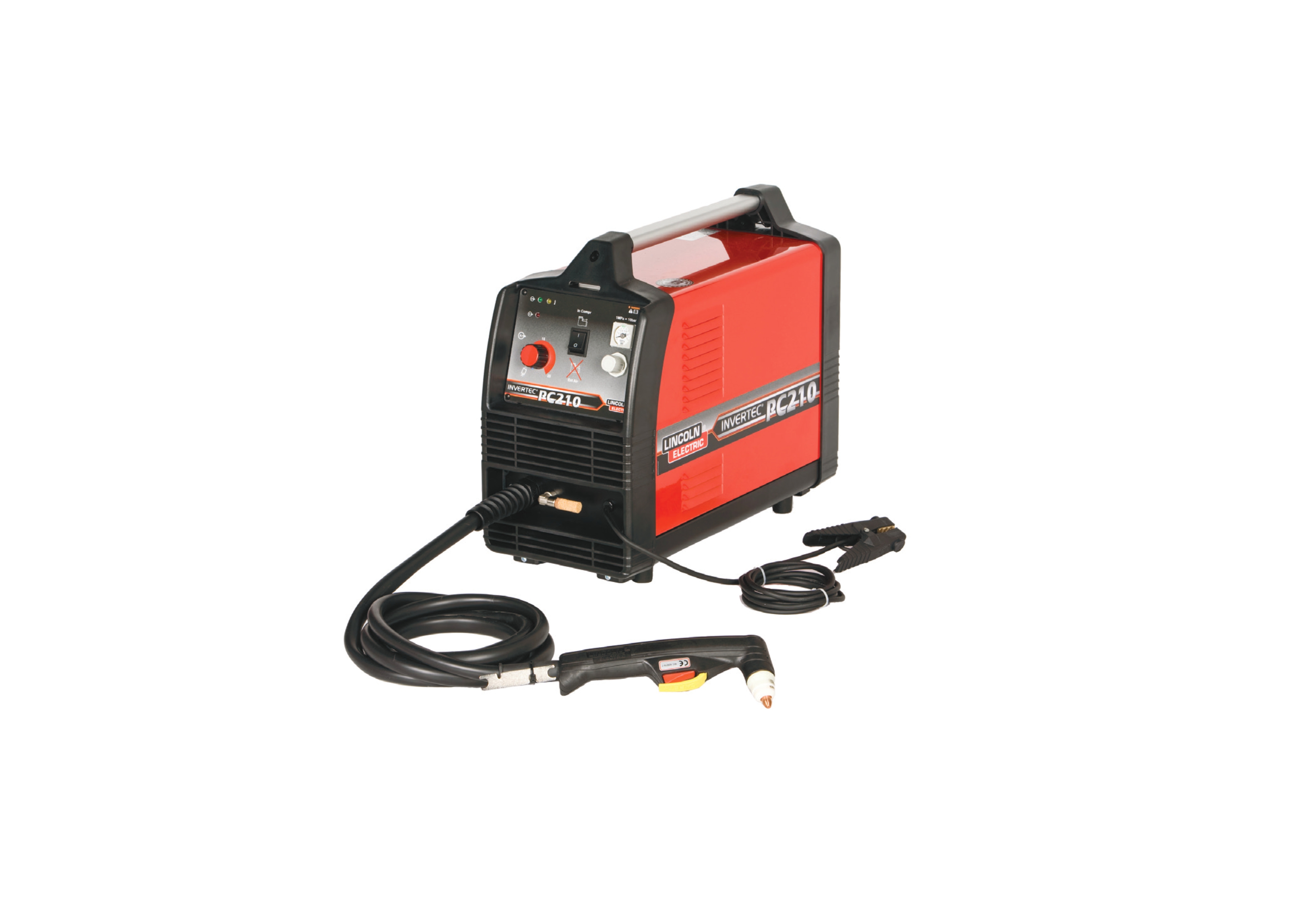

LINCOLN ELECTRIC INVERTEC PC210

Brand : Lincoln Electric

Model : Invertec® PC210

Feature:

Flexible: only 230 V input required.
High performance: innovative advanced electrode and nozzle design.
Robust: long life compressor.
Portable: only 18,5 kg, small and compact.
Different materials: mild steel, stainless steel, aluminium and many more.
Concentrated plasma stream: less heat input, less distortion.
Internal compressor or external -
• Vac peak voltage: below 410V.
• RMS voltage of the AC waveform: 230Vac ± 10%

TECHNICAL SPECIFICATION:

Primary Voltage (50-60Hz): 220V/1PH
Rated Output:
25A/90V/35%
20A/88V/60%

Cutting Capacity : 10mm
Flow Rate : 80l/min+/-20%@5,0bar
Inlet Pressure: 6,0 bar
Output Range (A): 10-25
Dimensions (H x W x D): 385 x 215 x 480
Net Weight: 18.5kg

Unit Includes :
2 m input cable with 16A plug
Mounted 3 m hand cutting torch
Ground clamp and cable
Air connection kit
Cutting torch consumables kit
Warranty: 2 years
