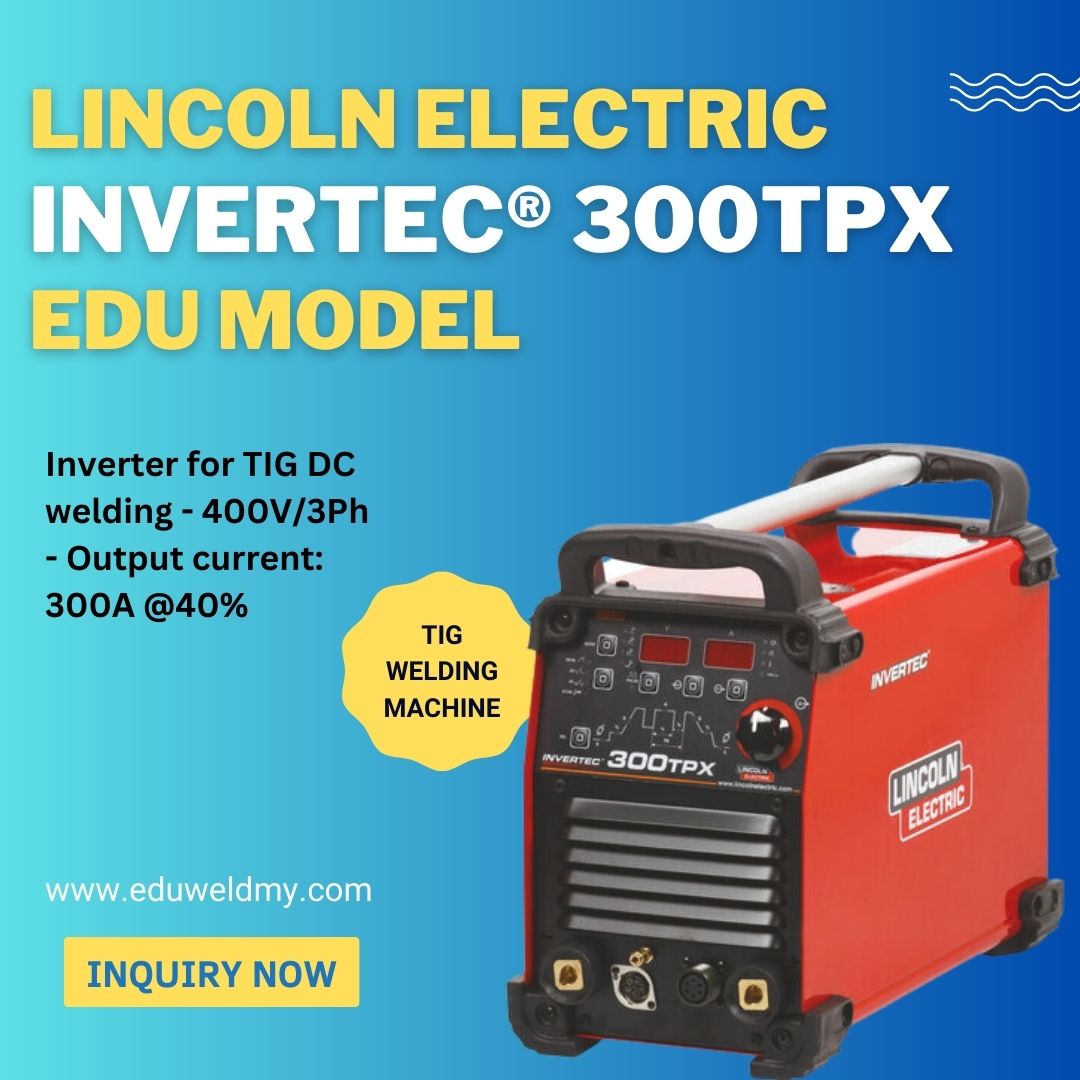

LINCOLN ELECTRIC INVERTEC 300TPX EDU MODEL
TIG WELDING MACHINE
Brand: Lincoln Electric
Model: Invertec 300 TPX
Specification:
Input Current: 20A
Input Hertz: 50/60 Hz
Input Power: 415/3/50-60 Hz (+/-15%)
Input Phase: 3 ph
Mode Icon: CC
Polarity: DC
Rated Output: 300A/22V @ 40%, 220A/18.8V @ 100%
Dimensions (H x W x D): 502 mm x 247 mm x 349 mm
Net Weight: 22 kg
The Invertec® 300TPX is a powerful inverter designed for TIG DC welding applications. It operates on 400V/3Ph input voltage and provides an output current of 300A @ 40%. With its robust yet lightweight outer casing, this welding machine is highly portable and suitable for hazardous environments. It features HF TIG ignition, Lift TIG ignition, 2 or 4-step operation, variable down slope, post-flow control, digital pre-set meters with hold functions, and built-in variable Pulse for precise welding control.
