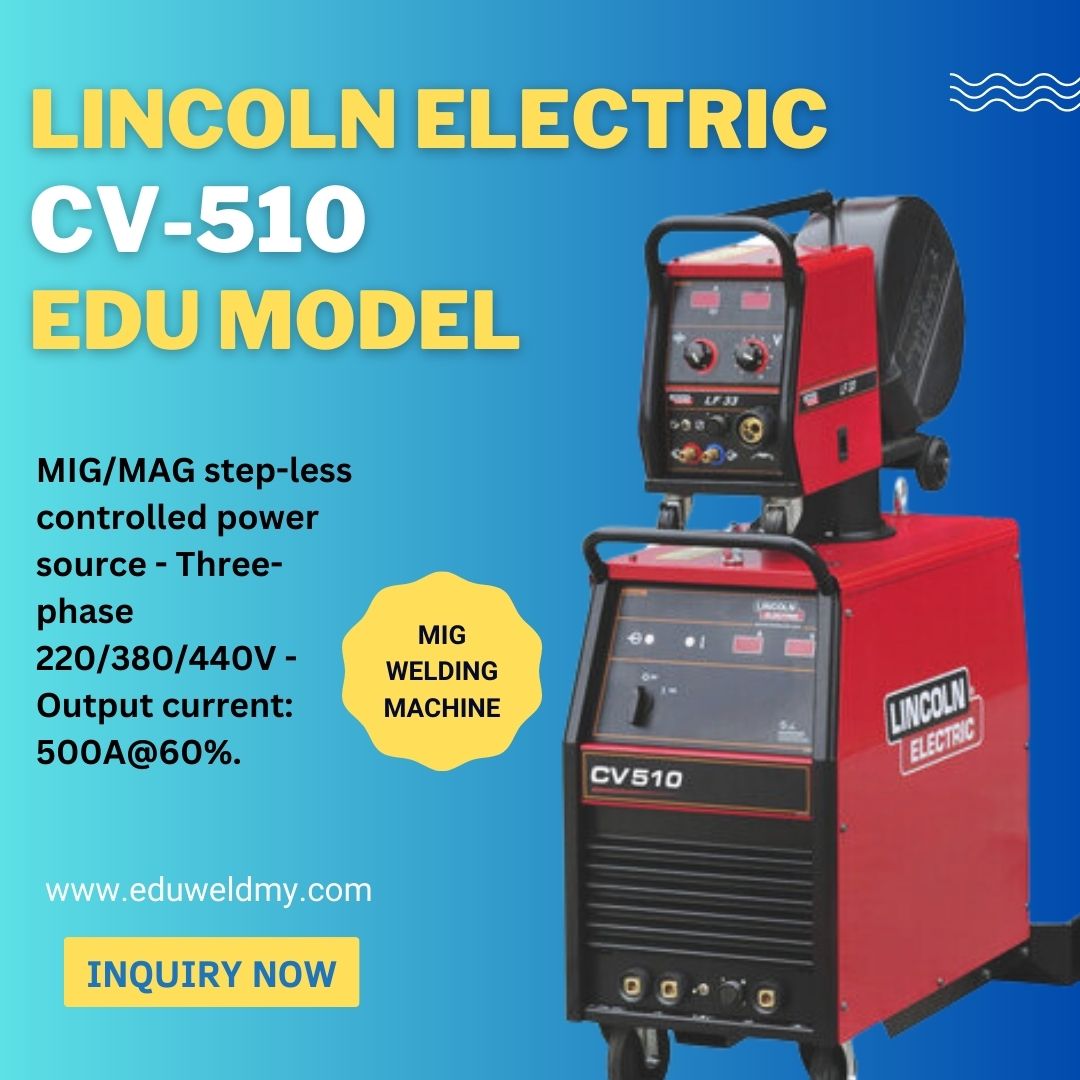

LINCOLN ELECTRIC CV-510 EDU MODEL
MIG WELDING MACHINE
BRAND: Lincoln Electric
MODEL: CV-510
SPECIFICATION:
Machines Processes: MIG (GMAW)
Input Voltage: 415V
Input Current: 63/40/40A
Input Hertz: 50/60 Hz
Input Power: 220/380/440V/3/50-60 Hz
Input Phase: 3 ph
Polarity: DC
Rated Output: 500A/39V @ 60%, 325A/33.3V @ 100%
Dimensions: 880mm x 696mm x 1020mm (H x W x D)
Net Weight: 160kg
FEATURES:
Different feeders available for construction and shipyards, with or without synergy or memory functions.
Conveniently placed controls on the feeder for easy access during welding.
Designed for maneuverability with large diameter wheels, push/pull bar, and lifting eyes.
Potted and encapsulated printed circuit board controls housed in separate compartments for dust-free operation.
MACHINE C/W:
5 M-INPUT CABLE
WORK CLAMP AND CABLE ASSEMBLY(3 M)
CV-510 is a high-performance MIG/MAG welding power source designed for heavy-duty applications. With its step-less control and three-phase input voltage options (220/380/440V), it delivers a reliable and versatile welding experience. The machine offers superb arc behavior with argon mix and 100% CO₂, making it suitable for various welding processes.
