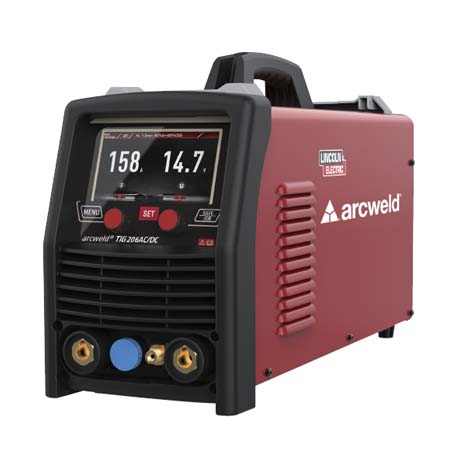

Lincoln Electric Arcweld® TIG 206AC/DC

Brand: Lincoln Electric

Model: Arcweld® TIG 206AC/DC

Processes

• Stick AC

• Stick DC

• Tig HF AC

  Pulse

• Tig HF DC Pulse

• Lift TIG AC Pulse

• Lift TIG

• DC Pulse

Specification:

• Input Power

  • 240V±10% / 1Phase

• Rated Output·

  • TIG AC

    • 20% 200A

    • 60% 115A

    • 100% 90A

  • TIG DC

    • 20% 200A

    • 60% 115A

    • 100% 90A

  • MMA

    • 10% 200A

    • 60% 85A

    • 100% 65A

• Welding current range

  • TIG AC

    • 10-200A

  • TIG DC

    • 10-200A

  • MMA

    • 30-200A

• Dimensions (H X W X D)

  • 350x220x580MM

• Net Weight

  • 12.1KG

Top Features

• Small and Light Weight yet versatility in one machine

• IGBT Technology

• LCD screen - For accurate setting & feedback of welding output

• PFC - Power Factor Correction technology for energy efficiency

• Select Lift and HF Arc ignition - For easy ignition or prevent tungsten sticking during ignition

• Adjustable Arc Force & Hot start - Improve the Welding performance and electrode starting

• Intelligent Protection

  • Over-voltage

  • Low-voltage

  • Over-current

  • Over-hear

• Roller wheel amps control on torch

Machine C/W:

• arcweld® TIG 206AC/DC power source

• 2M Input cable no plug

• 3M Welding cable with electrode holder

• 3M Ground cable with earth clamp

• 4M TIG torch

• 3M Gas hose with connector and hose clamps
