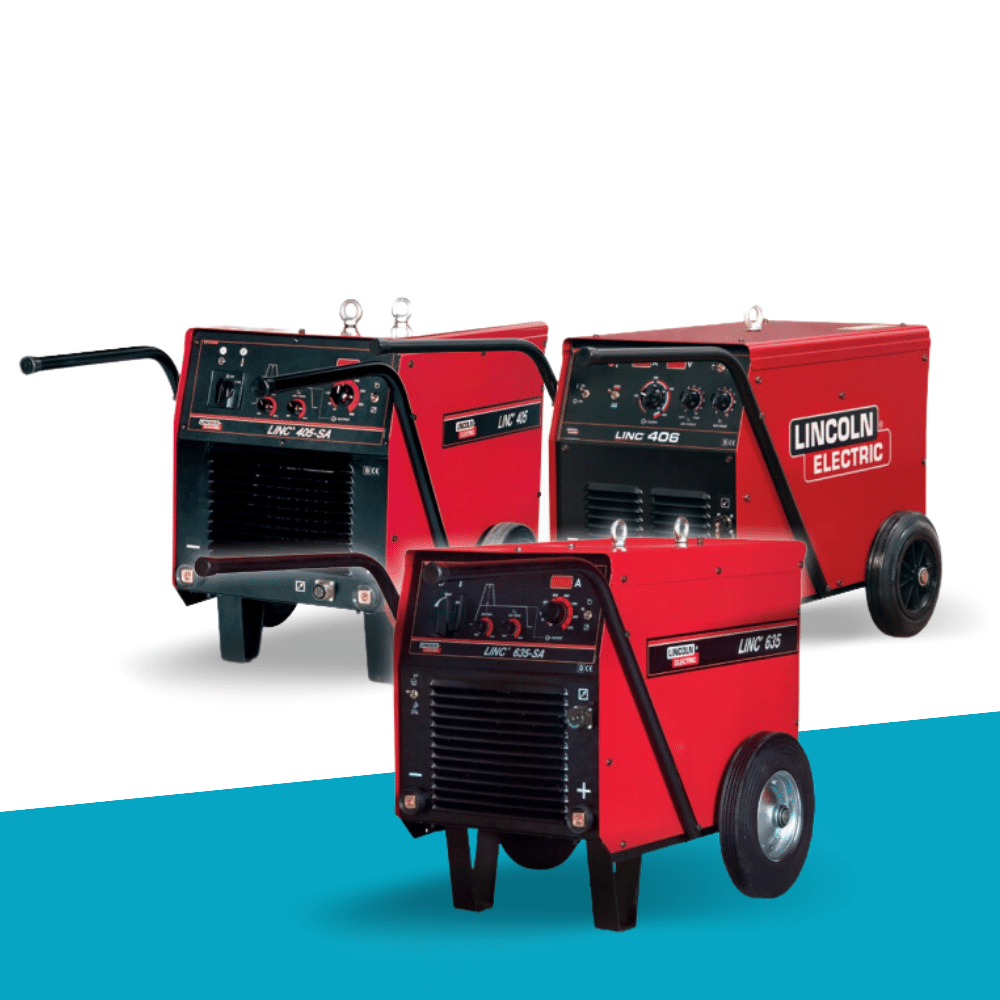

LINCOLN ELECTRIC LINC 635SA EDU MODEL

Brand: Lincoln Electric

Model: 635SA

Specifications:

• Input Power:415/3/50/60

• Rated Output:670A/44V@/35%
  400A/36V@100%

• Input Current:100/63A

• Output Range:15-670A

• Dimensions (H x W x D):670 mm x 580 mm x 700 mm

• Net Weight:150 kg

Features:
The rugged and distinguished workhorses

The LINC 635SA are exceptionally rugged conventional stick rectifiers built to be used under harsh environmental conditions. The units are available in two versions: - the basic LINC 635-S ready to support stick welding with all rutile, basic and cellulosic electrodes - LINC 635-SA complete with the additional features of arc force, Hot Start and digital meters.

• Rugged conventional welding rectifier with excellent arc characteristics.

• Capable of welding with Rutile, Basic and Cellulosic electrodes

• Arc gouging capability.

• Fan on demand (F.A.N.™) - built-in reduces power and the intake of dust and fumes.

• Ready to be moved - Equipped with wheels, pull bar and two lifting hooks.

• Easy to understand graphic control panels.

Machine C/W

• Gouging Torch X 3M

• Extended Welding Cable 3M With Air Hose

• Earth Lead X 3M

The LINC 635SA are exceptionally rugged conventional stick rectifiers built to be used under harsh environmental conditions. The units are available in two versions:

• the basic LINC 405-S and LINC 635-S are ready to support stick welding with all rutile, basic, and cellulosic electrodes

• LINC 405-SA and LINC635-SA are complete with the additional features of arc force, Hot Start, and digital meters

CATALOG DOWNLOAD HERE
