LINCOLN ELECTRIC LINC 405 EDU MODEL

Brand: Lincoln Electric
Model: LINC 405 S/SA

Specification:

• Process

  • Stick

    Lift

  • Tig DC (-SA)

  • Gouging

• Input Power

  •  230/415/3/50-6

• Processes
   Stick, Lift TIG, Gouging

• INPUT POWER

  • 230/400/3/50-60

• RATED OUTPUT

  • 400A/36V@35%

  • 240A/29V@100%

• INPUT CURRENT

  • 63/40A

• OUTPUT RANGE·

  • 15-400A

• DIMENSIONS (H X W X D)

  • 640 mm x 580 mm x 700 mm

• NET WEIGHT

  • 126 kg

Machine C/W:

• 5 m input cable

Top Features

• Rugged conventional welding rectifier with excellent arc characteristics.

• Capable of welding with Rutile, Basic, and Cellulosic electrodes.

• Arc gouging capability.

• Hot Start supports excellent arc-starting

• Arc Force to prevent sticking of the electrode in the welding pool

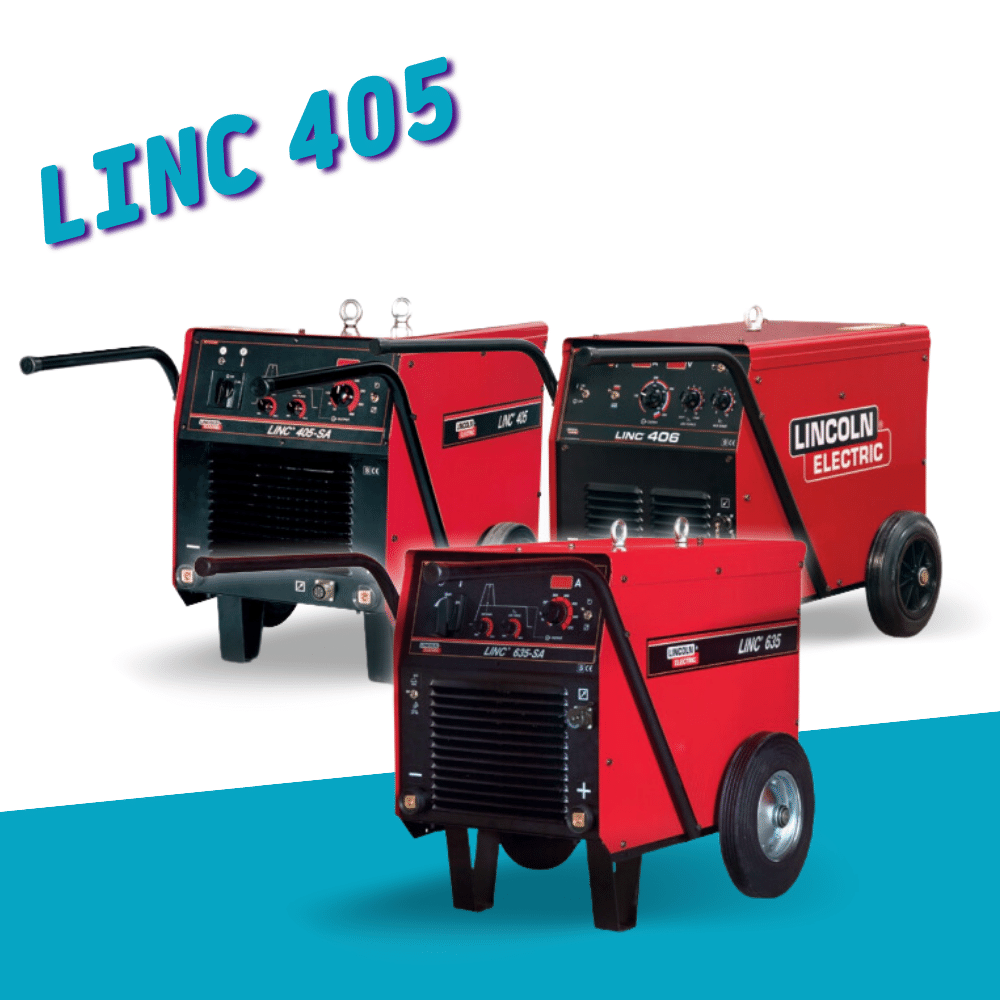

The LINC 405 are exceptionally rugged conventional stick rectifiers built to be used under harsh environmental conditions. The units are available in two versions:

• The basic LINC 405-S and LINC 635-S are ready to support stick welding with all rutile, basic, and cellulosic electrodes

• LINC 405-SA and LINC635-SA are complete with the additional features of arc force, Hot Start, and digital meter

MACHINE C/W:

• Gouging Torch X 3M

• Extended Welding Cable 3M With Air Hose

• Earth Lead X 3M

CATALOG DOWNLOAD HERE
