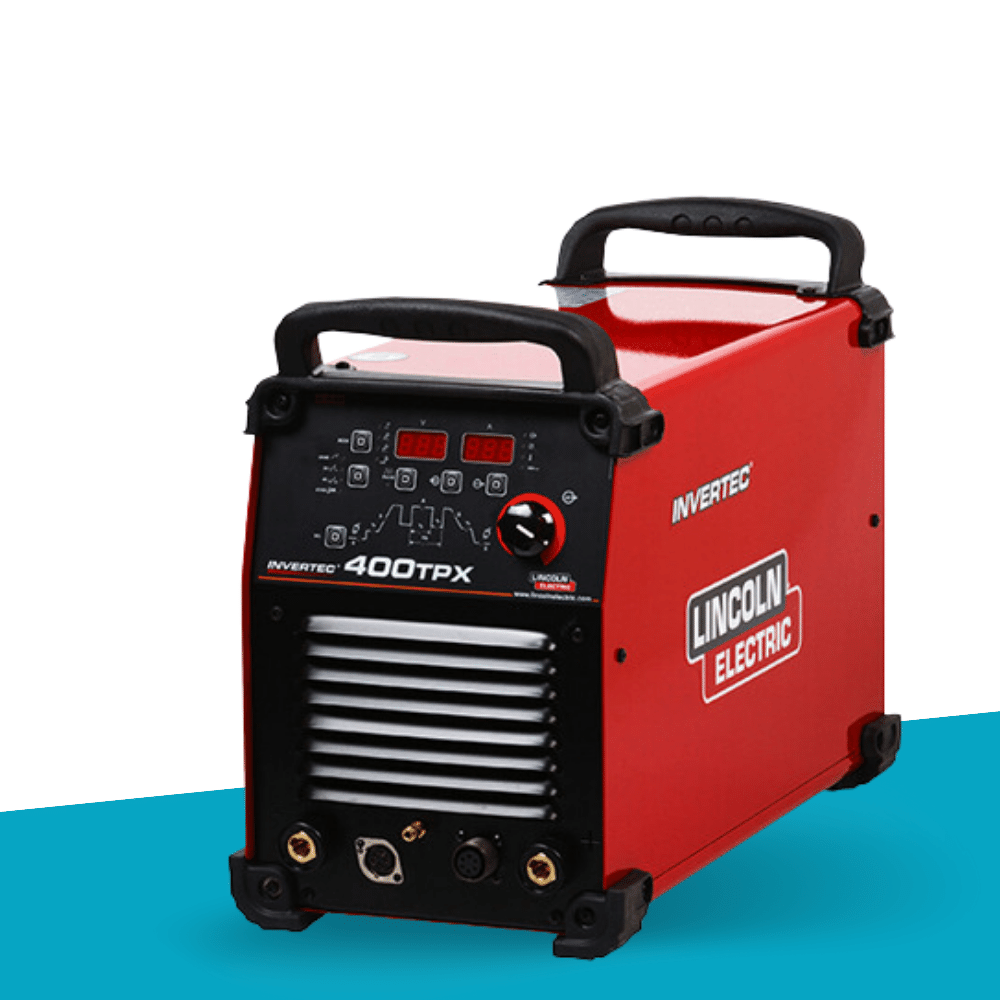

LINCOLN ELECTRIC Invertec 400TPX EDU MODEL

Brand: Lincoln Electric

Model: Invertec 400TPX

Specification:-

• Input Power: 415V/3PH/50/60HZ

• Rated Output: 400A/26V/35%;300A/22V/100%

• Input Current: 16A

• Output Range: 5-400A

• Dimensions (Hxwxd): 455mm X 301mm X 632mm

• Net Weight: 37kg

Machines Processes :

• Stick,

• Lift TIG,

• TIG Pulse

Applications:

• Light industrial/ Industrial plants

• Maintenance and repair

• Process and food industry/ Metal construction

Feature:

• Fully functional, user-friendly control panel layout with graph and numeric display makes it easy to set all welding parameters.

• Rugged construction: electrical safety (IP23S), potted PC boards and optimum airflow reduce contamination to extend the equipment's lifespan in the harshest environmental conditions.

• HF and Lift TIG ignition meeting all requirements.

• Perfect TIG HF starting with pre-settable starting mode.

• Complete TIG parameters setting: Pulse TIG with variable frequency that allows the welder to adjust the arc focus to suit the applications, 10 memory slots for personalized welding settings, TIG Spot welding.

• Water Coolers and Carts available
