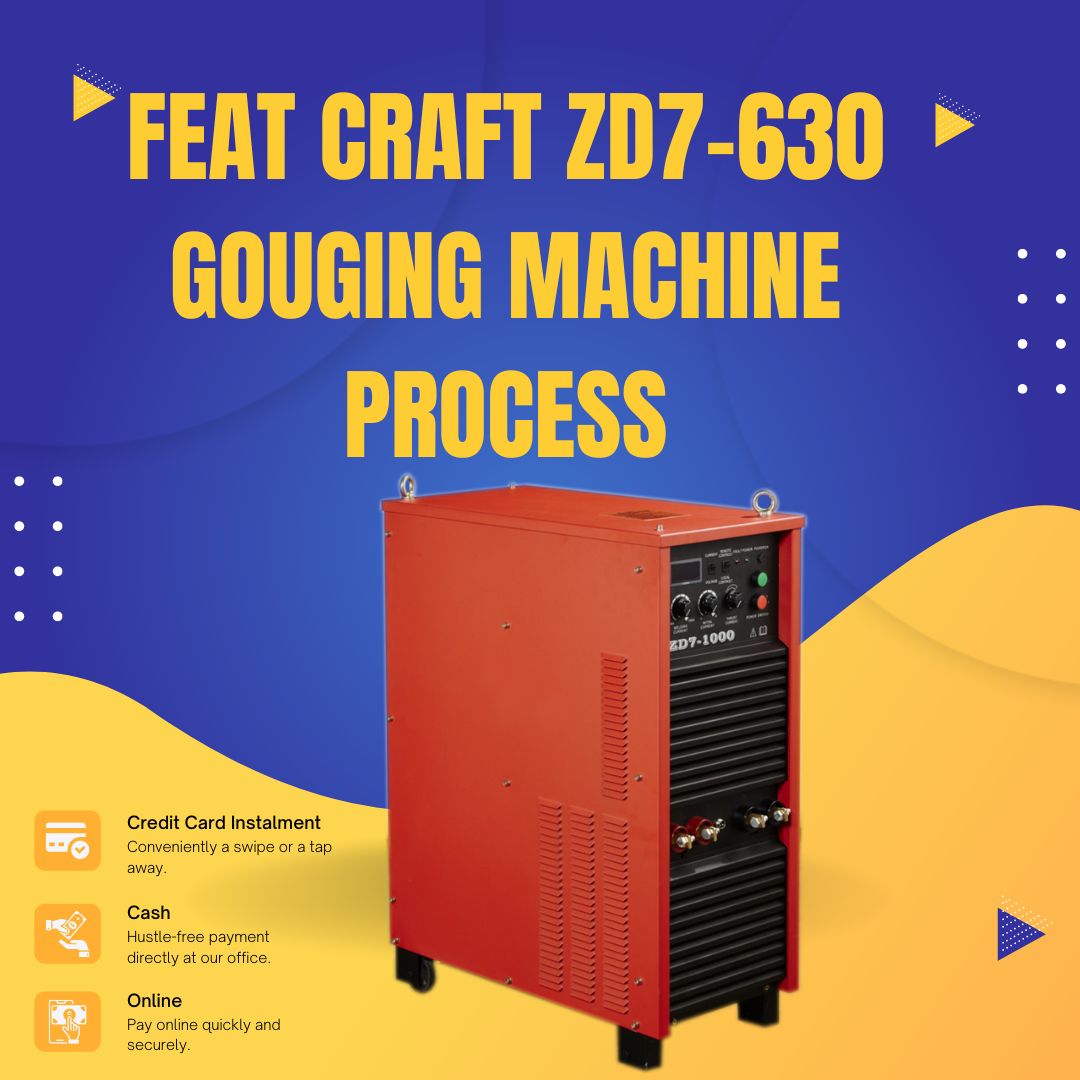

Feat Craft ZD7 - 630 Gouging Submerged Arc Welder
Brand: Feat Craft
Model: ZD7
TECHNICAL PARAMETER
Input Voltage/Frequency - 3PH 415V 50/60Hz
Rated Input Current A - 53
Rated Input Capacity KVA - 34.9
Rated Open Circuit Voltage V - 71.5
Open Circuit Current A - <1
Open Circuit Losses W - <500
Output Voltage Range V - 22-50
Output Current Range A - 160-630
Rated Duty Cycle - 100
Efficiency ->85
Power Factor ->0.9
Dimension (mm) - 730 x 360 x 970
Net Weight - 70.5
FEATURES
Suitable for MMA/Carbon Arc Gouging.
The excellent molding for weld joint.
Suitable for the different welding processes due to voltage compensation functionally.
Protection function: over-current, over-voltage or under-voltage, phase error, overload, etc.
C/W:
Gouging torch K5 c/w extended cable and gas hose(5M)
