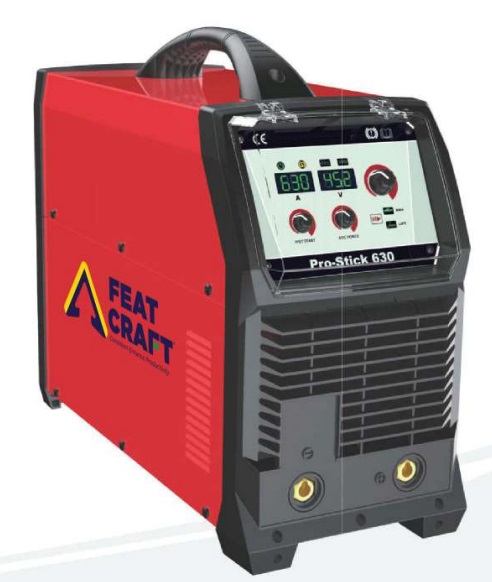

Feat Craft Pro-Stick 630 Welding Machine

Brand: FeatCraft

Model： Pro Stick 630

MMA TIG

• Rated Input Power (kW) : 32kVA / 25.5kVa

• Rated Input Current (A): 52A / 50A

• Effective Current (A): 48A/ 39A

• Duty Cycle 40’ (10min): 60%@630A /

  100%@490A

• Welding Current Range (A): 20~630

• Weight (Kg): 33.5

• Dimension (mm): 550x240x445

• No Load Voltage (V): 90/22.5

• Insulation Class: H

• Protection Class : IP23

• Efficiency: 80%

• Frequency: 50/60Hz

• Cooling: AF

• Electrode Diameter: 1.6~4.0

• Power Factor:0.70

Features:

-TIG Mode

Capable of welding lift TIG mode.

• Extra function

• Adjustable Hot Start/Arc Force, Anti-Shacking Automatic.

• Protections

• Equipped with temperature, voltage and current sensors for

• High protection.

• Digital Display

• Digital control of all welding parameters.

• Power Supply Voltage (V): 3~400

MACHINE C/W:

1. EARTH CABLE

2. ELECTRODE HOLDER



3. MIG 36 TORCH (3M)

4. Heavy Duty 4 Wheel Trolley

✅ Note: Feat Craft machine comes with Calibration and Validation report according to ISO 60974

✅ Machine Warranty: 2 Years

✅ Machines come with parts obtainable guarantee:-  Machine spare parts available for 10 years

✅ Come with maintenance training

✅ Schedule maintenance inspection for next 2 years

🔽 CATALOG DOWNLOAD HERE
