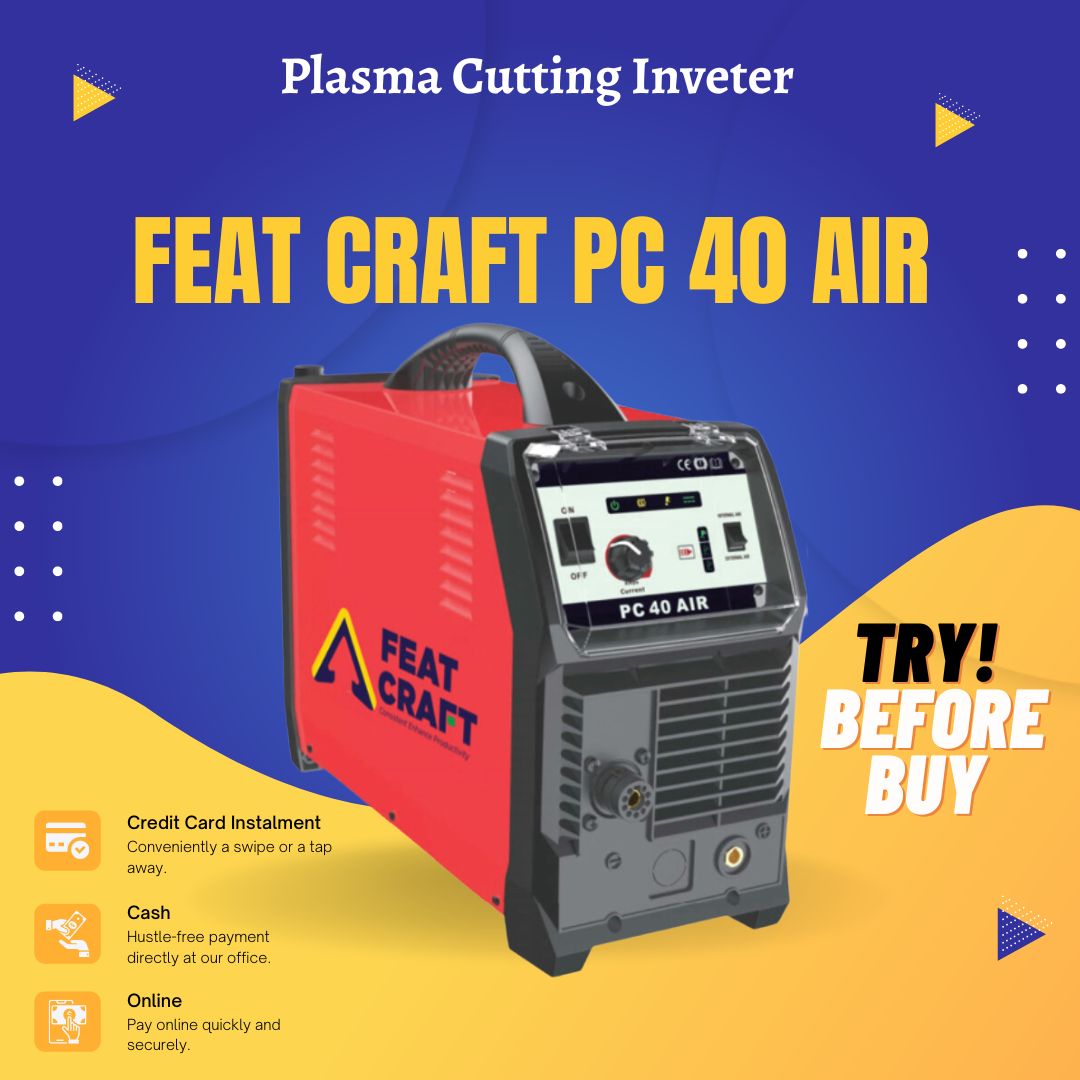

FEAT CRAFT PC 40 AIR
PLASMA CUTTIG
Brand: Feat Craft
Model: PC 40 AIR
Specifications:
Power Supply Voltage: 1-220V
Effective Current: 25A
Rated Input Power: 4.7kVA
Rated Input Current: 32A
Duty Cycle (40°C 10min): 40% at 40A / 100% at 30A
Grid Frequency: 50/60Hz
No Load Voltage: 32V
Cutting Current Range: 20-40A
Insulation Class: H
Protection Class: IP23
Cooling: AF (Air Forced)
Dimensions (L x W x H): 480mm x 210mm x 340mm
Weight: 17.9KG
Cutting Capacities:
Severance Cut (MM):
Carbon Steel ≤16
Production Cut (MM):
Carbon Steel ≤14
Stainless Steel ≤14
Aluminum ≤14
Copper ≤5
Features:
Compressor Options: Choose between an internal compressor or an external compressor for your air supply, providing flexibility based on your specific requirements.
Tested for Durability: Rigorously tested at 440V during production, ensuring durability and reliability in demanding applications.
Standard Power Supply: Designed for standard single-phase 3-400V 50/60Hz power supply, making it compatible with a wide range of electrical systems.
C/W:-
2 Mtr Input Cable
7.5M Hand-Cutting Torch
Ground Clamp And Cable
Air Connection Kit
Cutting Torch Consumables Kit
Heavy Duty 4 Wheel Trolley
✅ Note: Feat Craft machine comes with Calibration and Validation report according to ISO 60974
✅ Machine Warranty: 2 Years
✅ Machines come with parts obtainable guarantee:- Machine spare parts available for 10 years
✅ Come with maintenance training
✅ Schedule maintenance inspection for next 2 years
