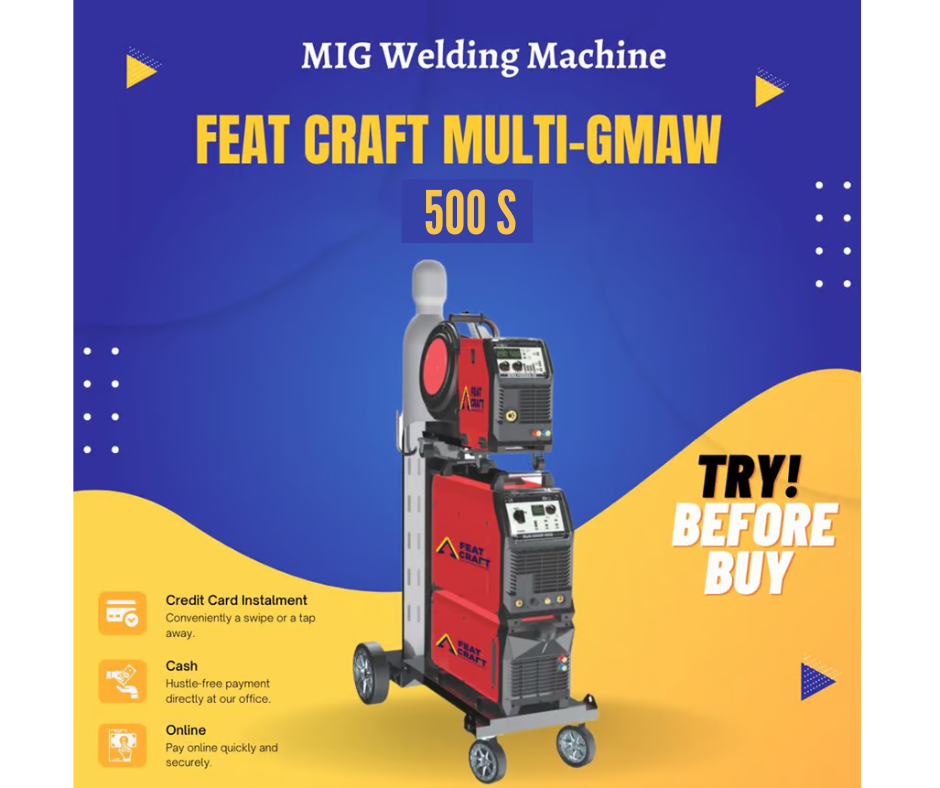

FEAT CRAFT MULTI GMAW 500S WELDING MACHINE

MIG WELDING MACHINE

BRAND: FEAT CRAFT

MODEL: MULTI-GMAW 500S

SPECIFICATION: MULTI-GMAW 500S

Power Supply Voltage: 3ph-415V
Frequency: 50/60Hz
Duty Cycle(40°C 10min): 60% 500A, 100% 400A
WELDING CURRENT RANGE: 40-500A(MIG)
WELDING Voltage RANGE: 14-50V (MIG)
No Load Voltage: 68
Efficiency: 85%
Insulation class: H
Protection class: IP 23
Cooling: AF
Dimensions L x W x H:605x 240x 445mm
Weight: 31.5 KG
Procees: MIG/MMA/TIG
Wire Diameter(MM):
- Fe:0.6/0.9/1.0/1.2/1.6
- Ss:0.8/0.9/1.0/1.2/1.6
- Flux-Cored:0.6/0.8/0.9/1.0/1.2/1.6
Electrode type: 6013 / 7018

FEATURES:

Digital display-Digital control of all the welding parameters.
Protections-Equipped with temperature, voltage and current sensors for high protection.
Arc Stability-Waveform control, for added stability of the arc, even at the low current.
When you have a wrong gird voltege. the machine will stop work immediately and the key core will be protected from damage especially the IGBT
Weld steel stainless and aluminum with the optional Spool Gun
Standard tripple phease 3-415V 50/60Hz power supply.
Spool standard 5kg/15kg/20kg
IGBT Module
SYNERGIC
Generator Friendly- Suitable for use with generators about 7kw.
550V Tested In Production
Heavy Duty Cycle 60%
Smart FAN-Reduce power consumption and the intake of dust and fumes.

MACHINE C/W:

✅ Note: Feat Craft machine comes with Calibration and Validation report according to ISO 60974

✅ Machine Warranty: 2 Years

✅ Machines come with parts obtainable guarantee:- Machine spare parts available for 10 years

✅ Come with maintenance training

✅ Schedule maintenance inspection for next 2 years
