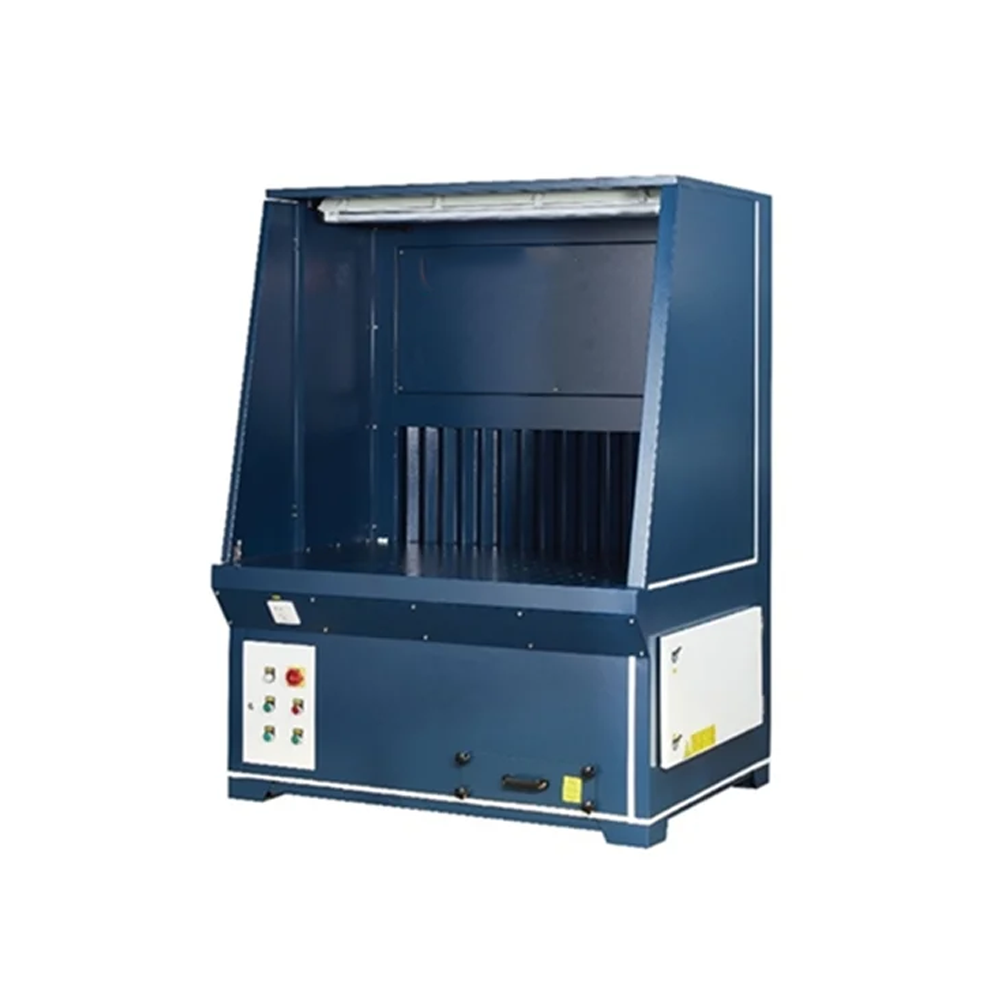

Feat Craft KSDM-3.0 Downdraft Grinding Dust Collector
Feat Craft KSDM-3.0 Downdraft Grinding Dust Collector Features:
● Low noise
● Stable performance
● Easy operation and use High purification efficiency
● Meeting indoor emission standards Reasonable structure design
● Low resistance loss
Feat Craft KSDM-3.0 Downdraft Grinding Dust Collector Introduction:
KSDM-3.0 Downdraft Grinding Dust Collector can realize bottom suction working mode to absorb and purify dust generated during polishing. The front bottom suction of industrial grinding dust collector is set according to the physical characteristics of the dust. The combination of top air supply and bottom air suction can not only achieve the purpose of absorbing dust, but also bring fresh breathing air to staff, thus effectively protecting the working environment of staff.
Feat Craft KSDM-3.0 Downdraft Grinding Dust Collector Parameters:
Model | KSDM-3.0 |
Inlet Air Flow | 3000±100 m³/h |
Motor Power | 3kW |
Power Supply | 3x380V/50Hz |
Filter Material | Spunbond polyester |
Filtration Area | 24㎡ |
Filtration Efficiency | ＞99.9% |
Filtration Precision | ≥0.3μm |
Filter Cartridge | 2 Pcs |
Cleaning Method | Automatic cleaning |
Compressed Air | 0.5~0.6MPa |
Noise Level | ≤72±5 dB(A) |
Dimension (WxDxH) | 1400×1150×1900mm |
Working table (WxDxH) | 1315×1000×730mm |
Weight | 550±15kg |
