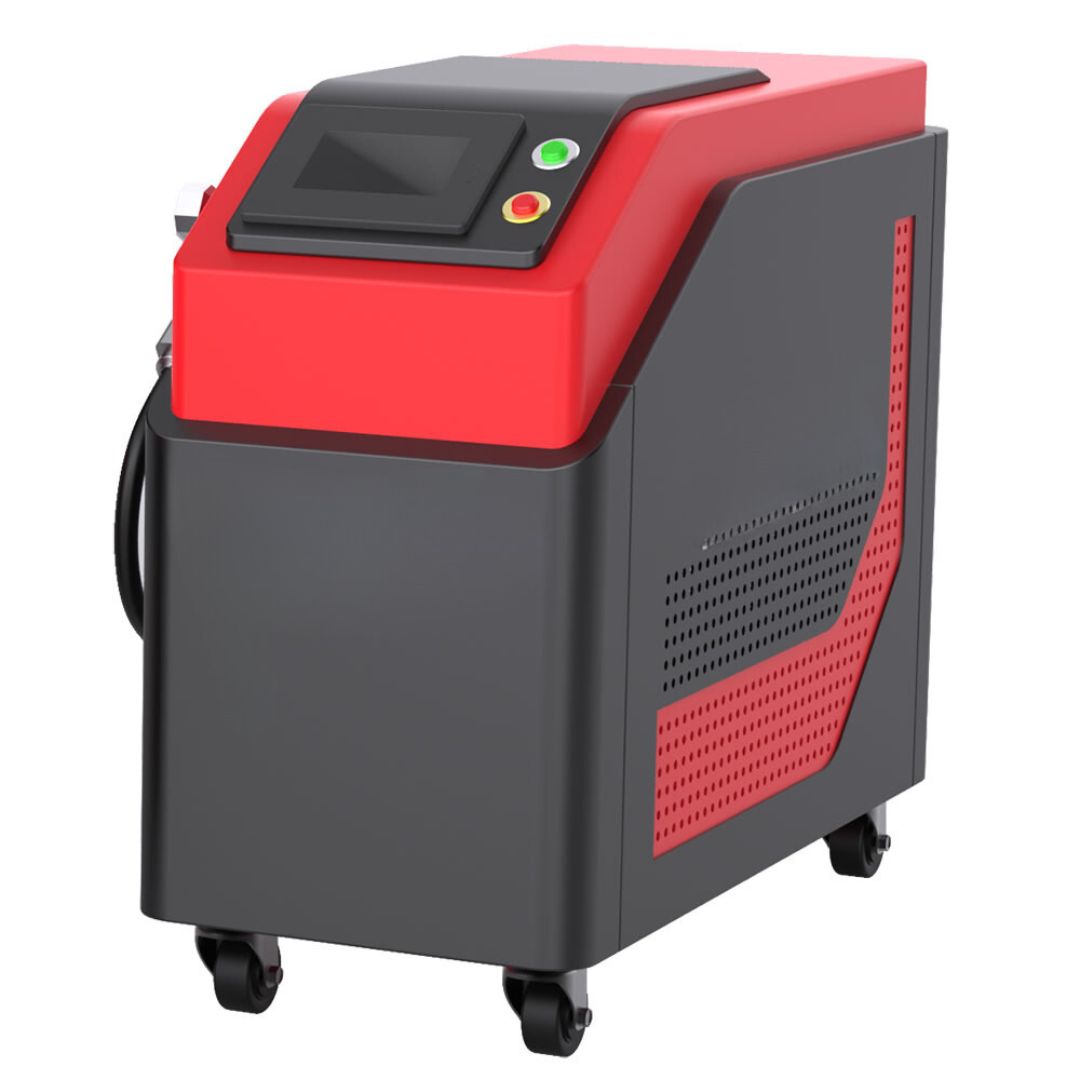

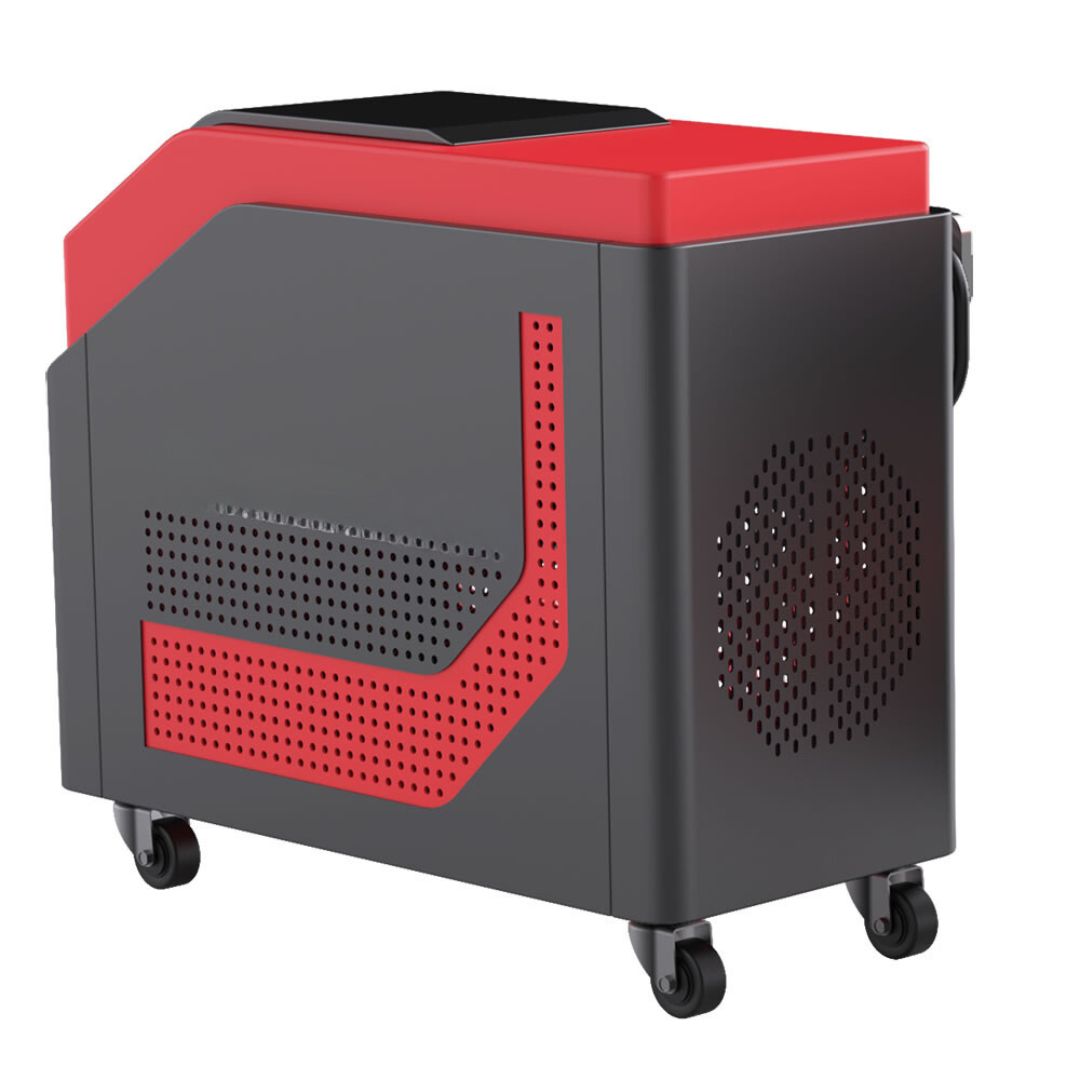

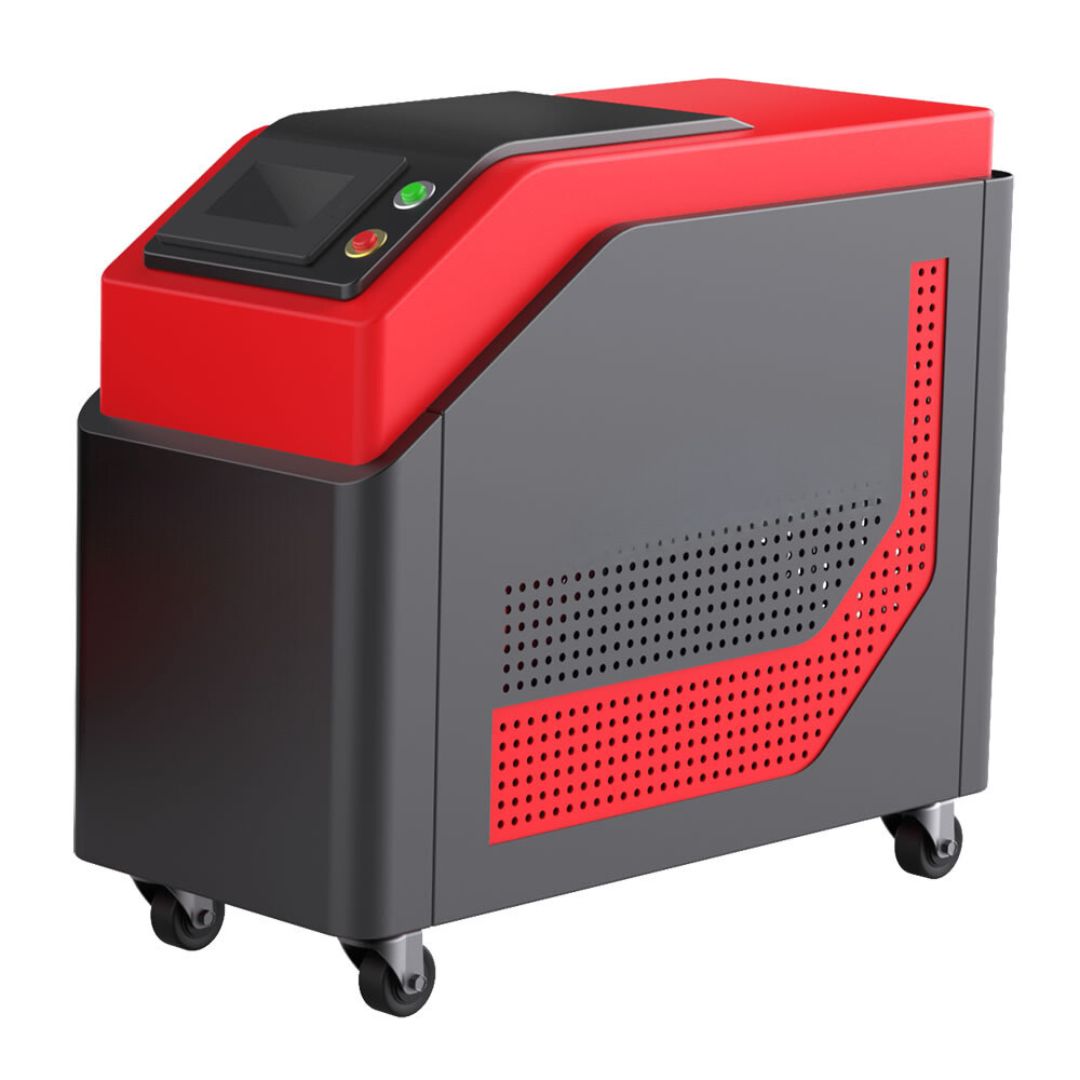

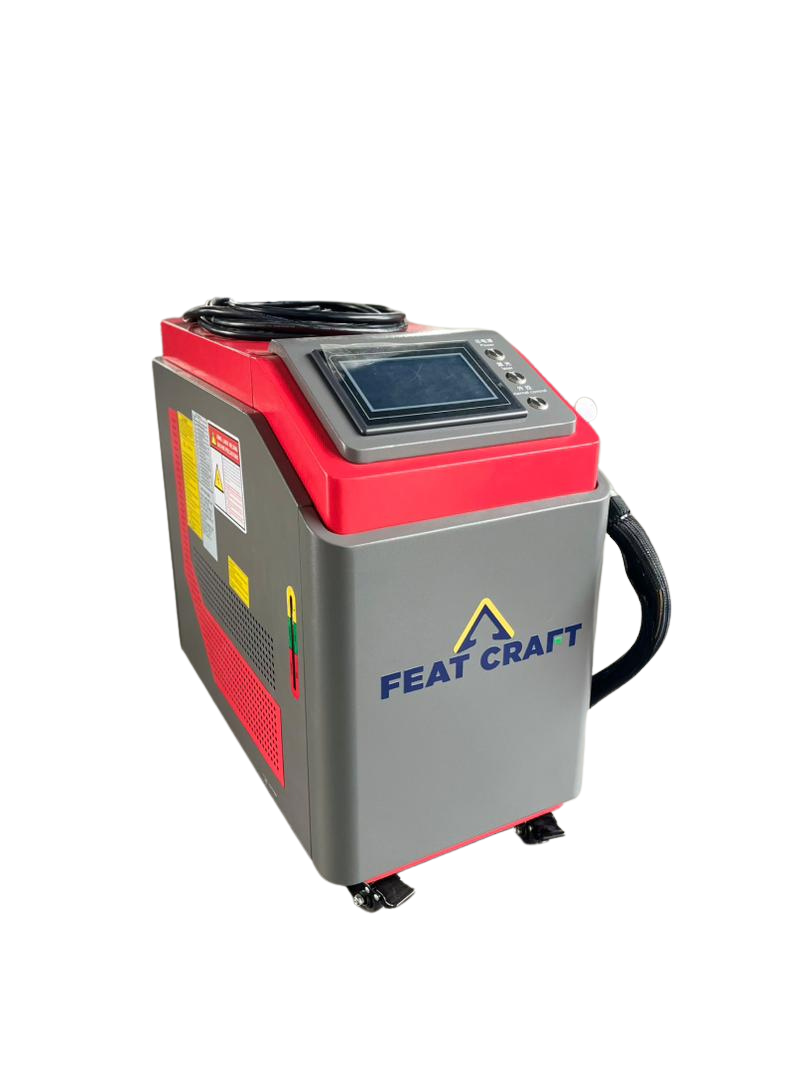

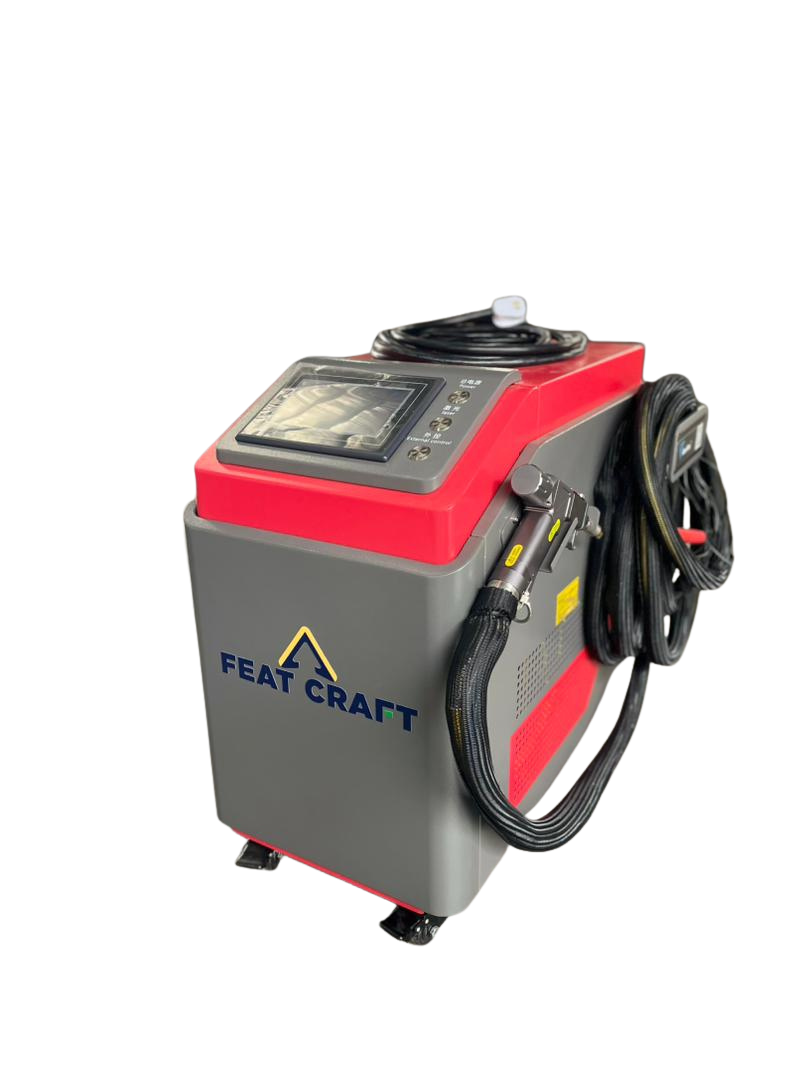

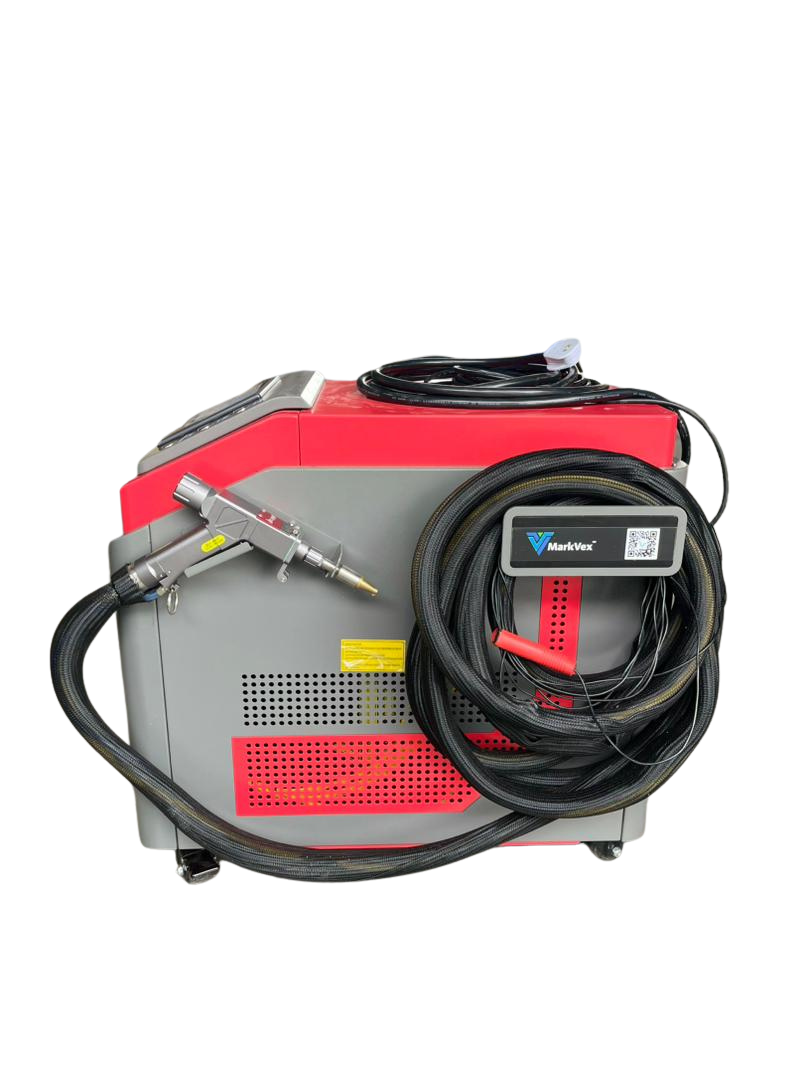

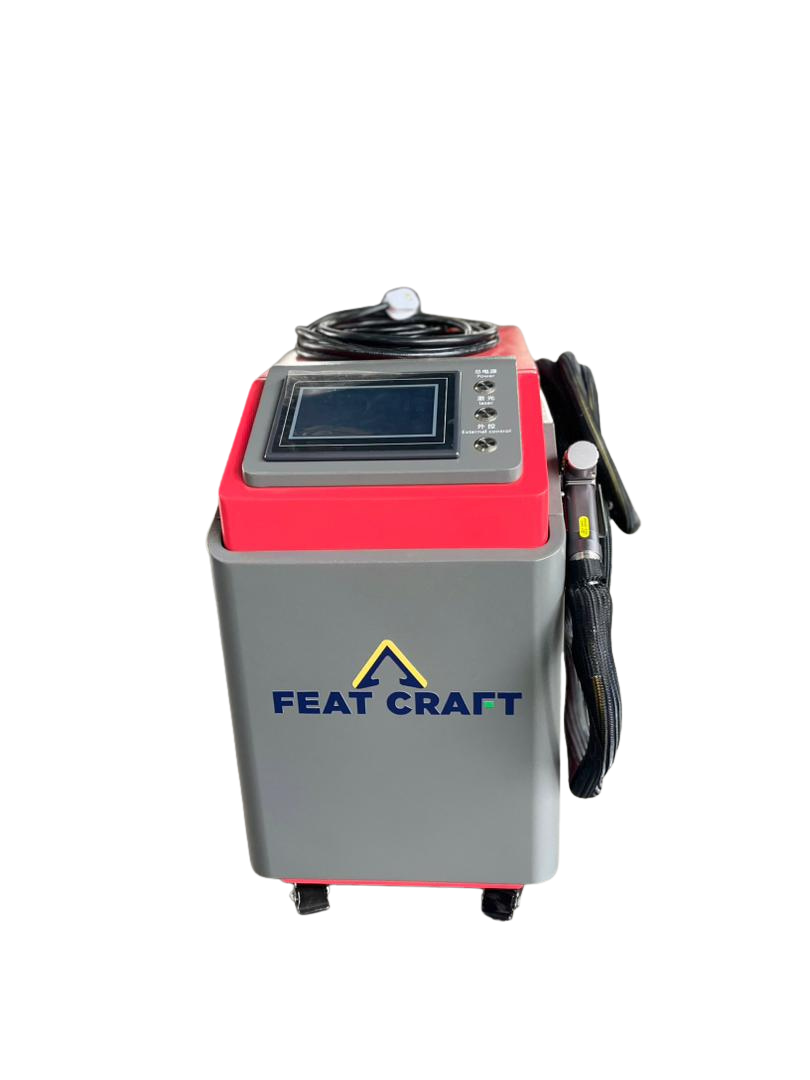

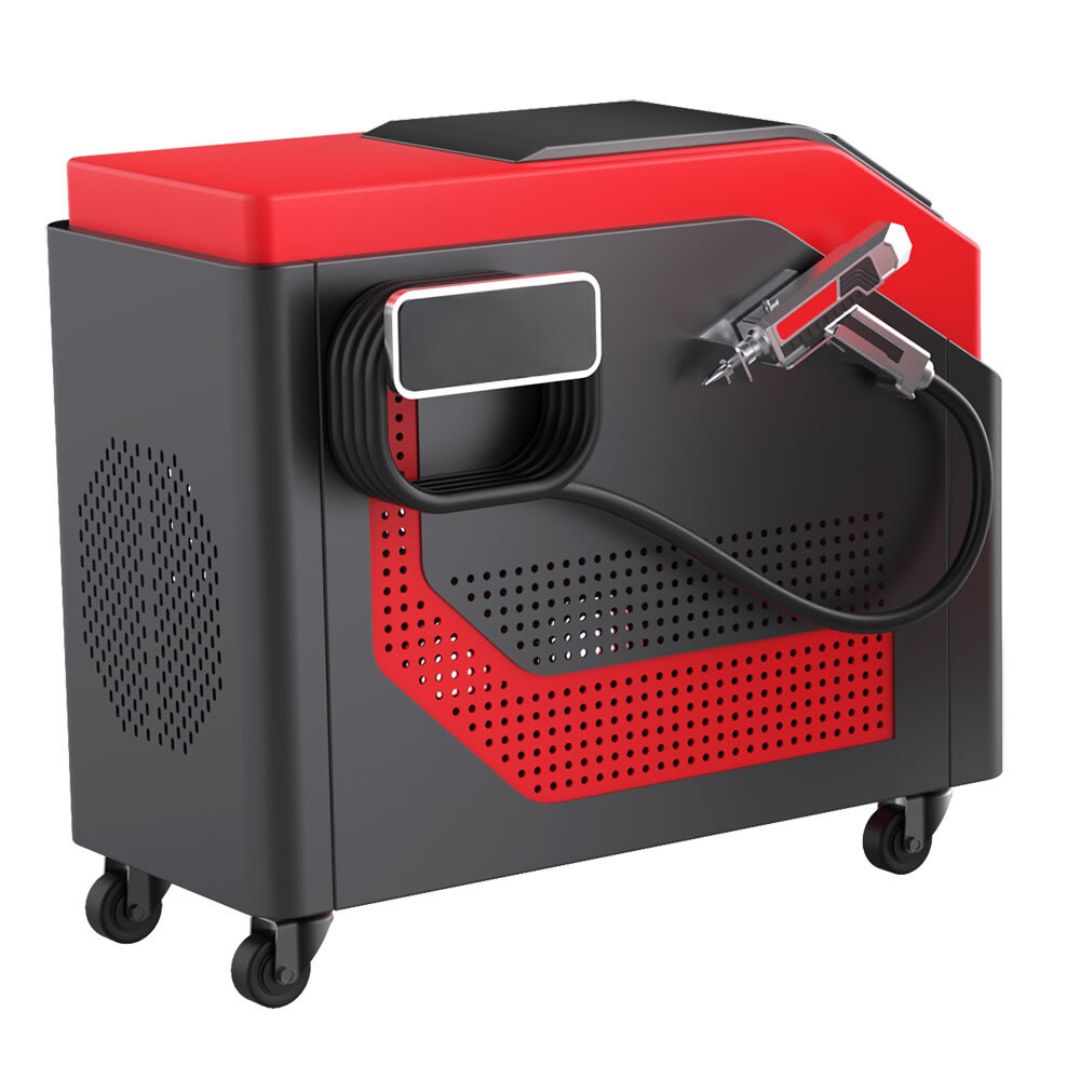

Feat Craft Handheld Laser Welding Machine
VX1500
Brand: Feat Craft
Model: Handheld Laser Welding Machine
SPECIFICATION
Name: Handheld Laser Welding Machine
Model: VX1500
Size: 390mm*590mm*690mm
Color: Gray & red color
Weight: 85KG
Laser power : 1000W /1500W /2000W
Laser wavelength: 1070NM
Fiber wire length: Standard length 10M
Working way: Continuous welding/spot welding
Welder speed: 0~12MM/S
Chiller: Industrial constant temperature water tank
Water requirement: Distilled water/purified water
Consumables: Copper nozzle/lens/gas
Working environment temperature: 0℃~40℃
Working environment humidity range: <70% No condensation and no water drops
Welding head: Single
Welding thickness: 0.5MM-6MM
Welding gap: ≤1.2MM
Adjustable spot size: 0.1-5mm
Wire size: 0.8mm-1.6mm
Welding materials: Stainless steel, iron, aluminum, galvanized sheet
Welding gas optional: Argon, nitrogen, air
Operating Voltage: 220V
Maintenance cycle: 30 days
PRODUCT SUPERIORITY
The hand-held welding gun replaces the previous fixed optical path, which is more flexible and convenient, realizes long-distance laser welding, and overcomes the limitation of the travel space of the workbench;
The operation mode of the hand-held welding torch can realize welding at any angle on any part of the workpiece;
The welding speed is fast, 2-10 times faster than traditional welding;
The welding seam is smooth and beautiful, reducing the subsequent grinding process, and saving time and cost;
The welding workpiece has no deformation, no welding scars, firm welding, easy to grind and polish, which solves the problems of welding penetration, welding tumor, and welding quality when using argon arc welding;
The laser welding depth is large and the welding is firm; it is suitable for various complex welds and spot welding of various devices;
APPLICATION
Advertising signs
Door and window guardrails
Furniture industry
Hardware decoration
SPECIFICATION
Kitchenware industry
Lighting industry
Fitness Industry
Pipe industry
