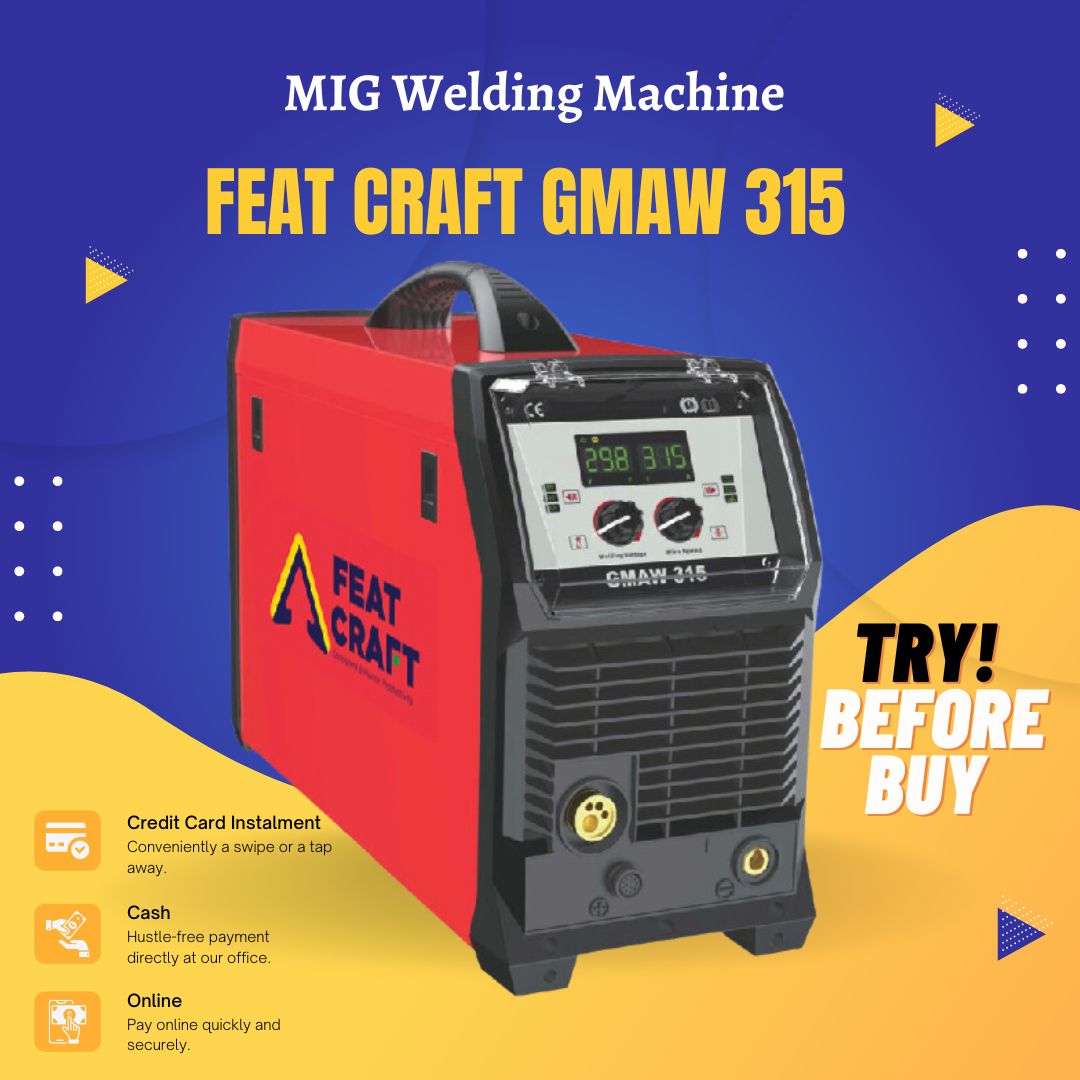

Feat Craft GMAW 315 MIG Welding Machine

BRAND: FEAT CRAFT

MODEL: GMAW 315

SPECIFICATION:

• Power Supply Voltage: 3-415V

• Effective Current: 15 A

• Rated Input Power: 11kVA

• Duty Cycle (40c 10min):

  • 40% 315A

  • 60% 250A

  • 100% 200A

• Frequency: 50/60Hz

• No Load Voltage: 53

• Welding Current range: 50-315 A

• Welding Voltage Range: 13.5-30V

• Efficiency: 85%

• Power Factor: 0.70

• Insulation class: H

• Protection class: IP 23

• Cooling: AF

• Dimensions L x W x H:618x 240x 445mm

• Weight: 25.0 KG

• Electrode type: 6013 / 7018

FEATURES:

1. Wire Feeder-4 rolls wire feeder is available.

2. Protections-Equipped with temperature, voltage, and current sensors for high protection.

3. Spool Gun-Capable of loading up to 5Kg Spools.

4. Arc Stability-Waveform control, for added stability of the arc, even at the low current.

5. Generator Friendly- Suitable for use with generators.

6. 440V TESTED In Production

7. SYNERGIC

8. Generator Friendly- Suitable for use with generators.

9. Power Factor Correction

   • Power factor more than 0.9 Multiple advantages such as energy saving and wider input voltage, works with 110V and 220v.

MACHINE C/W:

1. Earth Cable

2. Electrode Holder

3. TIW-Mig 36 Torch (4M)

4. Heavy Duty 4 Wheel Trolley

✅ Note: Feat Craft machine comes with Calibration and Validation report according to ISO 60974

✅ Machine Warranty: 2 Years

✅ Machines come with parts obtainable guarantee:-  Machine spare parts available for 10 years

✅ Come with maintenance training

✅ Schedule maintenance inspection for next 2 years
