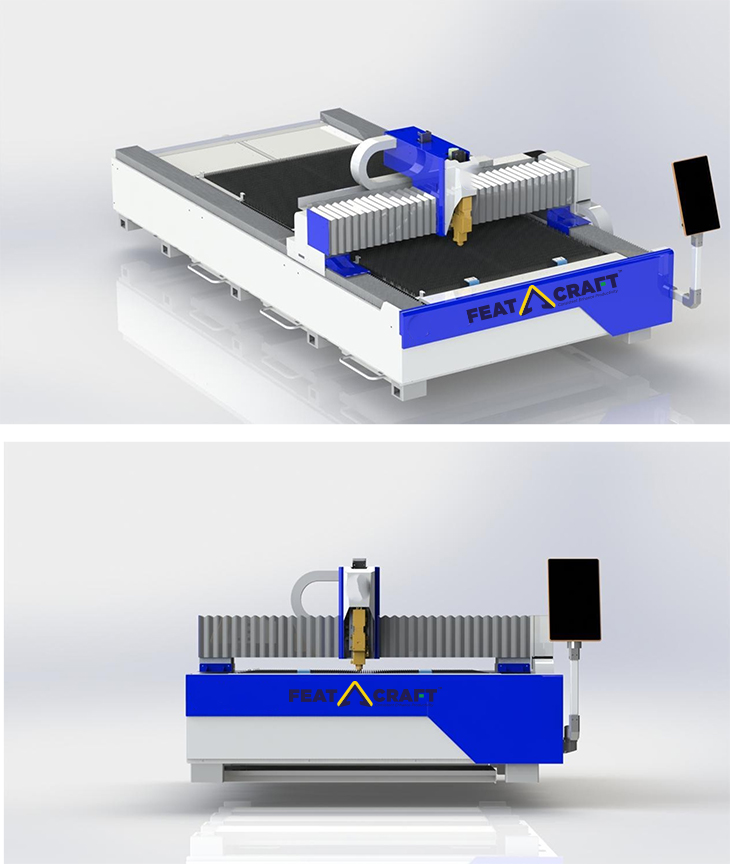

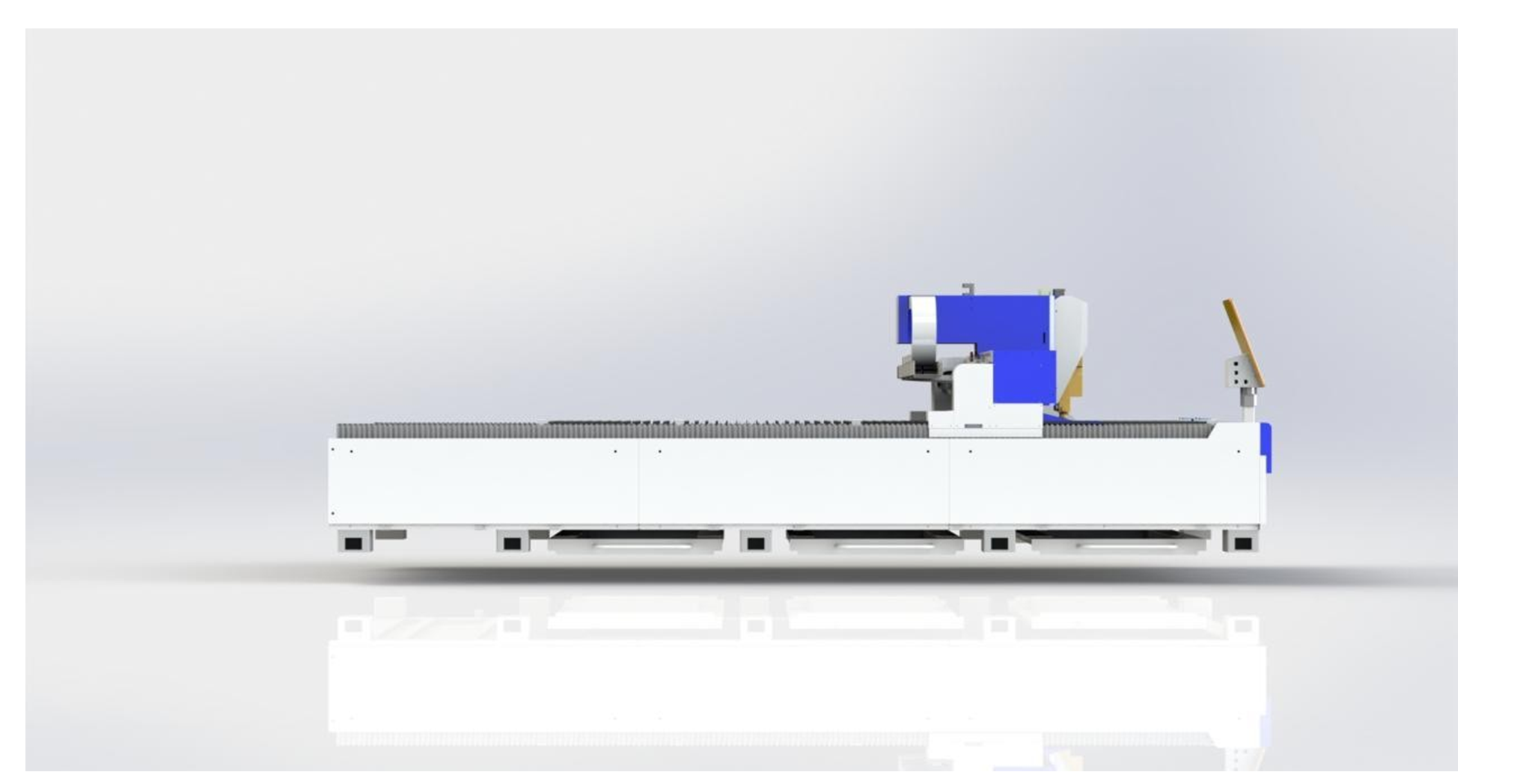

Feat Craft Fiber Laser Cutting Machine TPM0510H - 4000W
Fiber Laser Cutting Machine
Brand: Feat Craft
Model : TPM0510H - 4000w
SPECIFICATION:
MACHINE MODEL | QUANTITY (SET) | WARRANTY | |
TPM0510H | 1 Qty | 1+1 Years | |
Machine frame | · Whole steel plate welded · ME standard heavy duty machine frame · Aviation aluminum gantry | ||
Control system | · Raytools controller · Industrial CPU+camera monitoring system+DSP · Independent control box | ||
Laser source | · RAYCUS LASER 4000W | ||
Laser cutting head | · Raytools auto focus laser cutting head | ||
System Gantry | · Feat Craft Complex Handling design 228-58-NT | ||
Transmission system | · Germany ROUST linear guide rail · J&T TAIWAN Gear · Z axis TBI ball screw transmission | ||
Driver system | · Inovance servo motor X:850W Y:1300W Z:400W · TAIWAN FASTON reducer | ||
Auxiliary equipment | · Hanli Water chiller · Lubrication system | ||
Other important parts | · Japan SMC Proportional valve to control gas pressure · France Schneider electric device · Solenoid valve, control gas switch | ||
Consumable parts | FOC · 10 x Cutting nozzle · 20 x Protective mirrors · 5 x Ceramic ring
| ||
Dimension (L*W*H)mm |
4420*2400*1700 |
N.W/Kg |
1650
|
Machine Detail:
Working Area | 1500*3000mm |
X travel | 1550 mm |
Y travel | 3050 mm |
Z travel | 100 mm |
Laser Power | 4000W |
Working Table | Feat Craft flexible slated Heavy Duty Structure design HT-288-36 |
Max no-loading running speed | 120m/min |
Maximum acceleration | 1G |
Position Accuracy | ±0.03mm |
Repeat Positional Accuracy | ±0.02mm |
Cutting Thickness | 30mm |
Position Type | Red dot |
Working Voltage | 415V /50Hz |
Auxiliary Gas | Oxygen,Nitrogen,Air |
Working life of fiber module | More than 100000 hours |
Work Environment | 5-40°C, Moisture 45-85% |
Electric Current | 100A |
Frequency | 50HZ |
