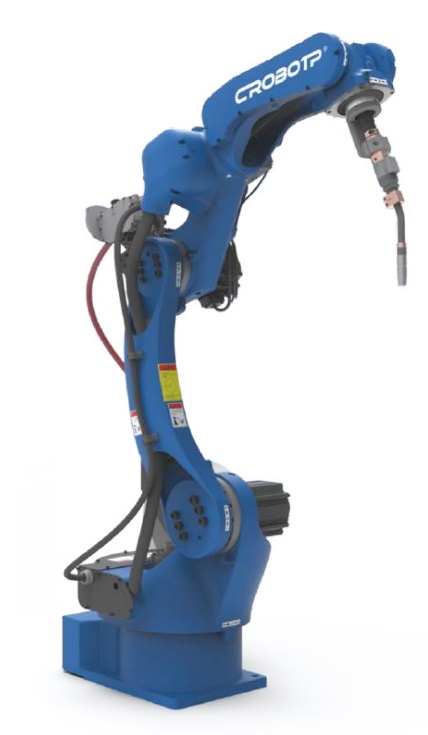

CRP-RH14-10-W -INDUSTRIAL ROBOT

Compact design: With a 1.4-meter arm span, our robot is highly compact and can be installed flexibly on the ground or upside down.
Versatile welding capabilities: Offering a large working space, fast running speed, and high repeated positioning accuracy, our robot is suitable for a wide range of welding applications.
Enhanced safety: Equipped with an independent safety emergency stop board and a double-circuit emergency stop system, we prioritize safety and reliability.
Flexible cable design: The robot body incorporates a highly flexible special cable, ensuring smooth movement and minimizing cable wear.
Stable power supply: A built-in three-phase transformer isolates 415V and 220V, promoting a more stable power supply. Additionally, a built-in three-phase filter improves EMC and EMI performance.
Dual-circuit gas pipe: Our robot features a dual-circuit gas pipe to meet your welding demands.
Installation versatility: The 6-axis middle hole with a 44mm inner diameter accommodates water-cooling torches and bellows torches, allowing for flexible installation options.
Highly flexible welding cable: Our robot includes a built-in highly flexible welding cable for efficient and reliable performance.

Arm form
- Vertical multiple joints
Degree of freedom
- 6 axis
Maximum payload
- 10KG
Repeated positioning accuracy
- ±0.08mm
Maximum reaching distance
- 1454mm
Robot body weight
- 170KG
Position Feedback
- Absolute Encoder
Installation mode
- Ground, upside down mounting, wall mounting
Maximum travel
- axis 1
  - Ground/upside down mounting 167-167" wall mounting-30-30
- axis 2
  - -155°-90°
- axis 3
  - -155°-90°
- axis 4
  - -190-190°
- axis 5
  - -105-130°
- axis 6
  - -210°-210°
Maximum Speed
- axis 1
  - 169°/S
- axis 2
  - 169°/S
- axis 3
  - 169°/S
- axis 4
  - 301°/S
- axis 5
  - 220°/S
- axis 6
  - 743°/S
Allowable
moment of inertia
- axis 4
  - 0.5kg.m²
- axis 5
  - 0.5kg.m²
- axis 6
  - 0.16kg.m²
Allowable torque
- axis 4
  - 20N.m
- axis 5
  - 20N.m
- axis 6
  - 11N.m
Installation environment
- ambient temperature
  - 0-45°C
- relative humidity
  - 20-80% (No condensation)
- vibration
  - Under 0.5G
- Others
  - Robot installation must be away from: Flammable or corrosive liquids or gases, electrical sources of interference
IP level
- Body IP54, wrist IP67
Advantage features
- Compact structure, high speed, high precision. high expansibility and easy operation
Application
- Welding
- cutting
- assembly
- handling
- marking
- grinding
