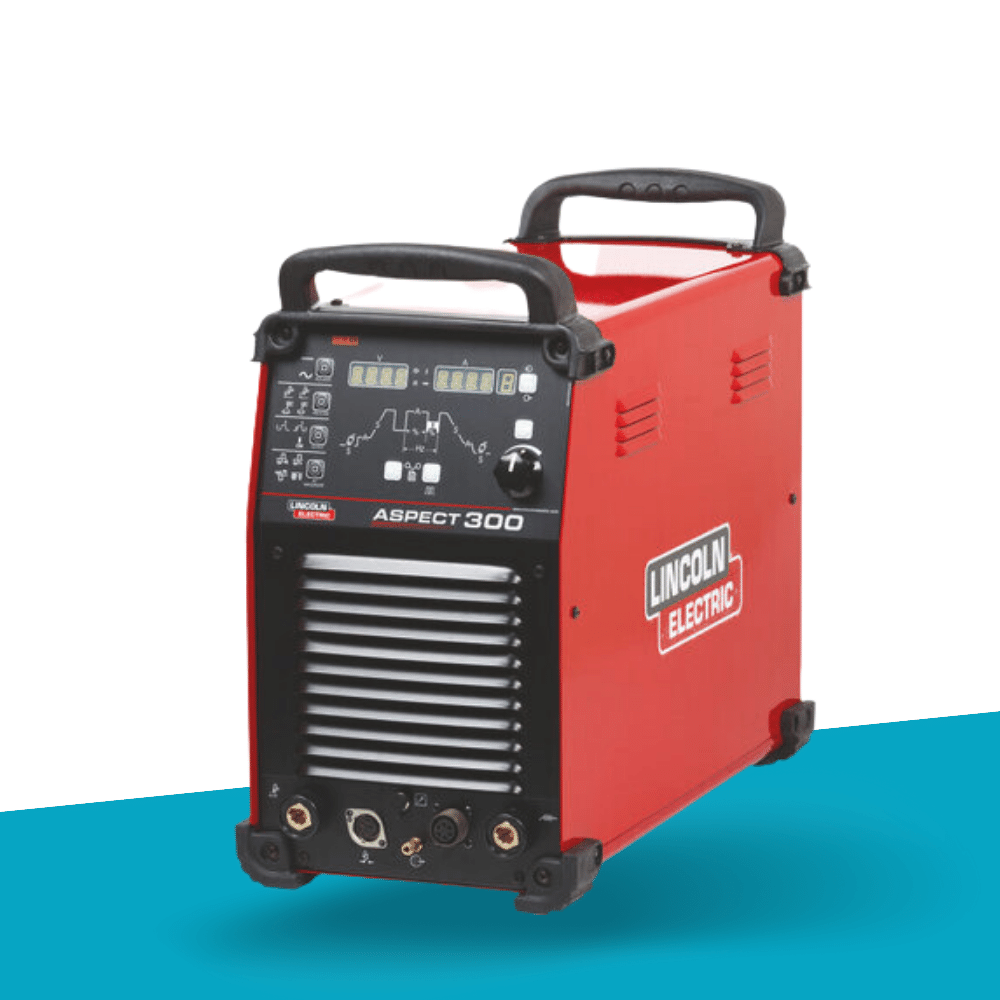

Lincoln Electric Aspect® 300 ACDC Edu Model

TIG Stick AC/DC

Send Inquiry now: sales@eduweldmy.com

Brand: Lincoln Electric

Model: Aspect 300

Specification:

Processes

  • Stick DC,

  • Stick AC,

  • TIG DC,

  • TIG AC,

  • TIG Lift,

  • TIG HF,

  • T

    IG Pulse

Input Power

  • 230/400/3/50/60

Support Generator Used With Pfc

Rated Output·

  • 300A/22V/35%

  • 200A/18V/100%

Input Current

  • 32/20A

Output Range

  • 2-300A

Dimensions (H X W X D)

  • 455 MM X 301 MM X 632 MM

Net Weight

  • 43 KG

Designed in compliance with the following standards:
EN 60974-1:2012, EN 60974-3:2014, EN 60974-10:2014

Operation Software UI & CTRL firmware License LifeTime

Top Features

  • Advanced waveform technology for the best aluminium welding performance.

  • Advanced TIG AC & DC Functions – Four wave shapes, Pulse, adjustable Balance and Offset, innovative and simple control panel, AC auto setting.

  • Variable AC frequency (40-400 Hz) for the control of travel speed and penetration.

  • Fully functional, user-friendly control panel layout with graph and a numeric display makes it easy to set all welding parameters.

  • Cellulosic capability.

  • Energy efficient 3 phase buck-boost circuit for energy saving

  • Come with VRD Safety

  • Conforms to the following directives:2014/35/EU , 2014/30/EU

Machine C/W:

  • MSWP-Air Cool TIG Torch x 25ft

  • MSWP Earth lead x 12ft

  • MS Argon Regulator

  • Argon Hose

  • Input Power Cable x 3m

  • Gas Connection kit

  • 4 Wheel Trolley with Handle

  • Operation Manual Book

  • Pen-Drive in Service and Maintenance Book

DOWNLOAD THE CATALOG HERE
