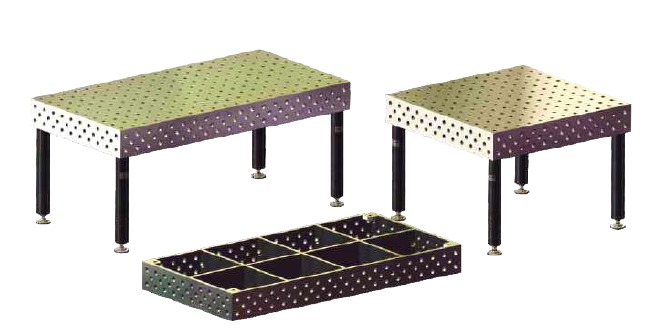

3D WELDING TABLE

Product Introduction

3D Welding table has 5 working surfaces (1 top + 4 side surfaces), the sides are for extending working area and positioning.

• 3 Series: D16/D22/D28.

• D16 tables: Hole diameter is Φ16mm; Hole spacing to each other is 50±0.05mm; Grid pattern 50x50mm on table top.

• D22 tables: Hole diameter is Φ22mm; Hole spacing to each other is 75±0.05mm; Grid pattern 75x75mm on table top.

• D28 tables: Hole diameter is Φ28mm; Hole spacing to each other is 100±0.05mm; Grid pattern 100x100mm on table top.

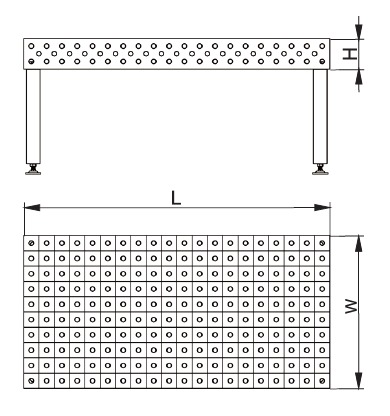

Specifications

• Maximum Processing Rang of Gantry Type Milling Machine: 12m x 4.5m (for Welding Tables & Customized Fabrications)

D16 Part No.

D22 Part No.

D28 Part No.

• 🔽 CATALOG DOWNLOAD HERE
