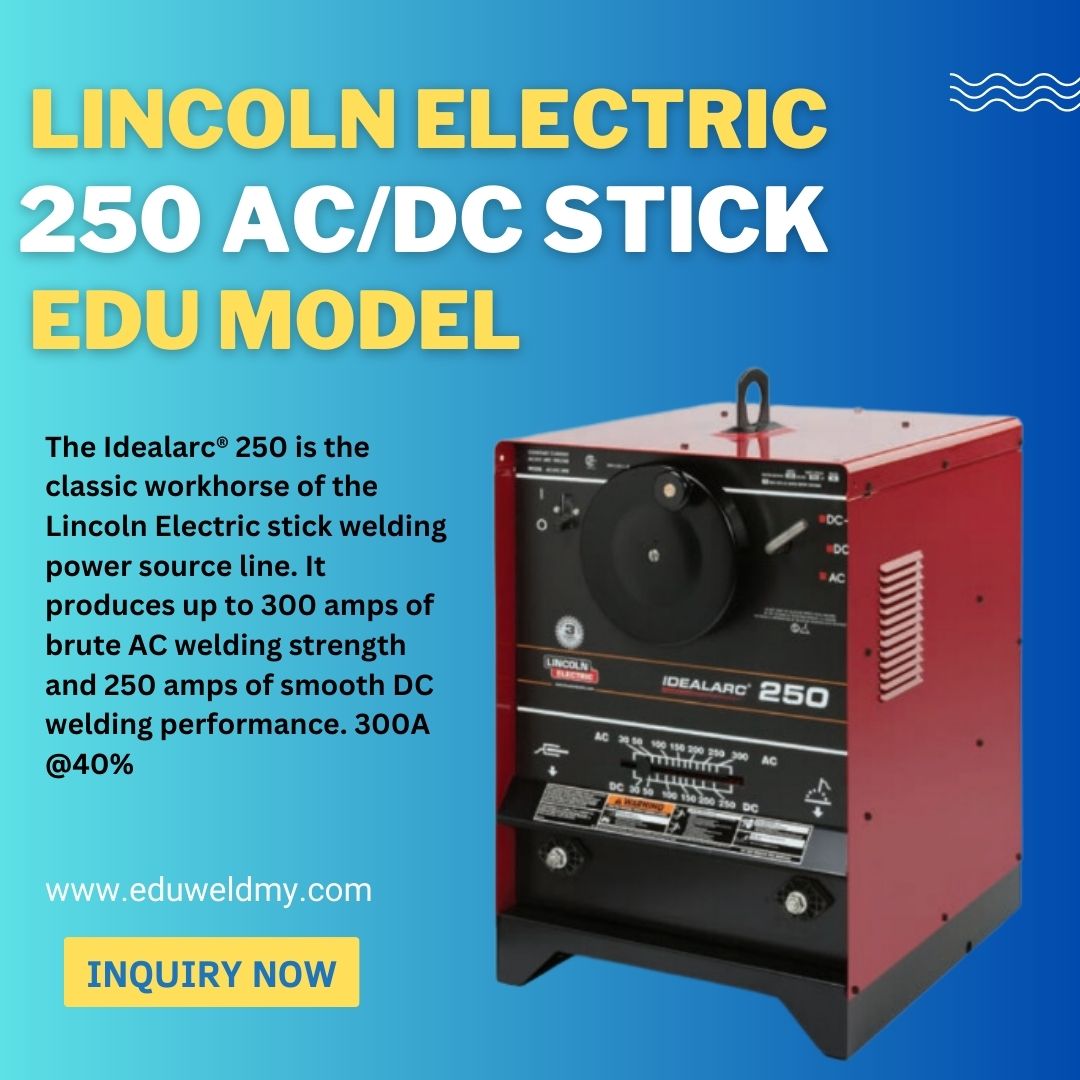

Lincoln Electric Idealarc 250 AC/DC Stick Welding Machine

Brand: Lincoln Electric

Model: Idealarc 250 AC/DC Stick Welding Machine

Top Features:

250 Amp Stick Welder

The Idealarc® 250 is the classic workhorse of the Lincoln Electric stick welding power source line. It produces up to 300 amps of brute AC welding strength and 250 amps of smooth DC welding performance.

• Outstanding arc stability and built-in stabilizer -

  • Provide popout-resistant welding with all AC electrodes.

• Versatile welding range -

  • With up to 300 amps AC and 250 amps DC.

• Suitable for use with every type of electrode -

  • Including low hydrogen, stainless steel, hard-facing, aluminum, and bronze.

• Easy set-up and operation -

  • Full range continuous current control dial with a current indicator for exact heat required for each job.

• Change polarity -

  • With a twist of the wrist – AC, DC+, or DC-.

• Stackable case design -

  • Allows machines to be stacked 3 high to save valuable floor space.

• Fan-cooled -

  • For extra thermal protection.

Technical Specification:

Input Power

• 208/230/460/1/60

Rated Output

• 250A AC/30V/30%

• 250A DC/30V/30%

Input Current

• 75/68/34A

• 95/86/43A

Output Range

• 35-300A AC

• 40-250A DC

Dimension (H X W X D)

• 27 in x 19 in x 21.5 in (686 mm x 483 mm x 546 mm)

Net Weight

• 158.76 kg

Country Of Origin:

• LINCOLN ELECTRIC USA

Machine Max Rating:

• 300

Accessories:

• Cable With Earth Clamp

• Cable With Electrode Holder

• 1 Copy Operation and Service Manual
